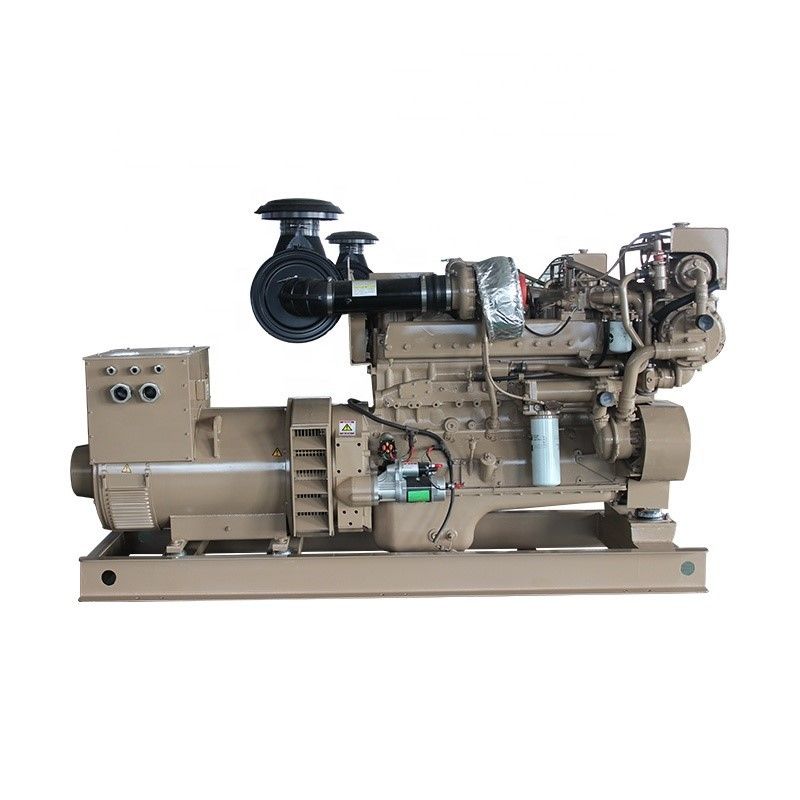

400KW 500kva 50hz Marine Diesel Genset 6 Cylinders Good Dynamic Performance

400KW 500kva 50hz Marine Diesel Genset 6 Cylinders Good Dynamic Performance
400KW 500kva 50hz Marine Diesel Genset 6 Cylinders Good Dynamic Performance

Large Image :  400KW 500kva 50hz Marine Diesel Genset 6 Cylinders Good Dynamic Performance Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: SUTONG
Certification: CCS/BV/ABS
Model Number: CCFJ-400J5
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic package. LCL, 20FT , 40FT , 40HQ are available, according your order quantity
Delivery Time: 45 DAYS
Supply Ability: 100 SET/month
Detailed Product Description
Prime Output Power:: 400kw/500kva Stamford Alternator Model:: HCM 534E
Governor Type:: ELECTRIC TYPE DRIVE ENGINE:: K19-D(M)
Fuel Consumption At Rated Power:: 82.5L@100% Load; 63.7L@75% Load Frequency:: 50 Hz
High Light:

portable marine generator

,

marine diesel genset

,

marine emergency generator

CCS Certification Diesel Generator 400KW 500kva 50hz Cummins K19-D(M) 6 cylinders Stamford alternator marine generator set



Cummins series marine main generator set and emergency set are provided, the power range from 20KW TO 1600KW, compact unit is easy to install, with low fuel consumption, good dynamic performance, high efficiency. The ship certificate of CCS, BV,NK or other major classification society can be provided.



Marine Diesel Engine Data
Engine Brand Cummins
Engine Model K19-DM, 4 Stroke,WaterCooled.
Number of Cylinders 6cylinders in Line
Aspiration Turbocharged and After-cooled
Fuel system Cummins PT pump
Bore × Stroke 159 x159 mm
Rated Speed 1500 RPM
Exhaust Wet type
Compression ratio 14.5:1
Displacement 19L
Prime Power 336kW /450HP
Speed Governor Electrical
Cooling System By heat exchanger
Fuel Consumption

82.5L@100% load

63.7L@75% load

Starter Motor DC24V
Emission Standard IMO1, EIAPP Certificate (optional)
Certificate CCS/BV (optional)







Alternator Specification
Alternator Brand Stamford
Alternator Model HCM 534E
Frequency 50Hz
Voltage 400V/3 phase
Prime Power 440KW/550KVA
Type Brushless, Self-excited,marine type
Power factor 0.8
Insulation Grade H
Protection Grade IP23(IP44 is optional)
Phase / wire 3 phase 3 wires
AVR MX341
Voltage regulation ± 1.0 %
Bearing Single
Winding leads 12
Certificate CCS/BV/Lloyds/DNV/ABS/Rina,etc (optional)





Standards

  • GB/T13032-1991, ISO9001:2008 and CE Quality Control System.
  • As to Classification Society, CCS,ABS, BV, DNV-GL or LR marine class certificate is optional.



Sales promises



Kontune Power provides a full line of brand new and high quality products.Warranty 12 months or 1,000 running hours, which comes firstly. Furthermore, all Cummins engines and Stamford alternator are covered by Cummins and Stamford Global-United warranty and distributor service network.





Marine Classification Society Certification

CCS (China Classification Society) certificate for engine/alternator/control panel/complete genset is optional, which is the member of IACS (the International Association of Classification Societies)and chaired IACS Council respectively in1996-1997 and 2006-2007.

And Kontune Power can also apply special certificates such as ABS, BV, DNV-GL or LR etc. according to the client’s special requirements.







Packing

Wooden case or plywood case





Warranty

Warranty:Guarantee for one year or 1200hours from ex-factor date.During the repair time,we will provide the free easy-damageable spare arts of diesel engine caused by our quality of production or raw material.After expiration,we will supply cost spare part for you to repair it.









Dimension & Weight


400KW 500kva 50hz Marine Diesel Genset 6 Cylinders Good Dynamic Performance 0



Standard Configuration (Open Type)
Overall Size: 3150(mm)×1000(mm)×1900(mm) Weight: 3700 kg



400KW 500kva 50hz Marine Diesel Genset 6 Cylinders Good Dynamic Performance 1



Soundproof Type

Overall Size: to be confirmed

Weight: to be confirmed















Our Adervantage:



1. We are the original supplier of DCEC engine assembly and engine parts.



2. We can give strong technical support.



3. We can matching the engine assembly and parts quickly and accurately.



4. We can produce according to the special requirements of the customers.





FQL:



Q1. Can you provide technical support?

A: Yes, As an OEM branch of DCEC, we can provide strong technical support for you. and we can

provide other brands of generators and lister.



Q2: If I only had the engine NO, Can you find the matching parts quickly for me?

A: Yes, we are equipped with DCEC QuickService Online System that enables us to provide information of DCEC engine assembly and parts quickly and accurately.



Q3: How long is the production time of the goods?

A: We have a lot of regular inventory of the parts, it will take 3-7 days after receiving your advance payment. and the engine assembly delivery time depends on the items and specification of customers.



Q4: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We will show you the photos of the goods and packages before you pay the balance.



Q5. What is your packing method?

A: Generally, the engine assembly is packed in wooden case, the parts is packed in carton. And we can also according to customers requests.
