Product Details:
Payment & Shipping Terms:
|
| Model No.: | SW38M5 | Standby Power: | 41KVA/33KW |
|---|---|---|---|

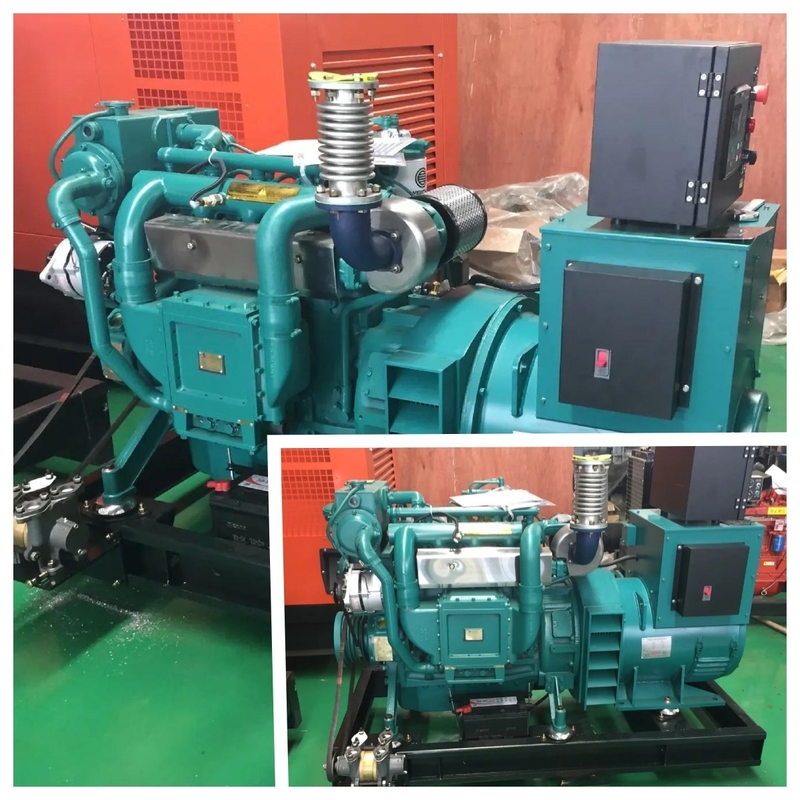

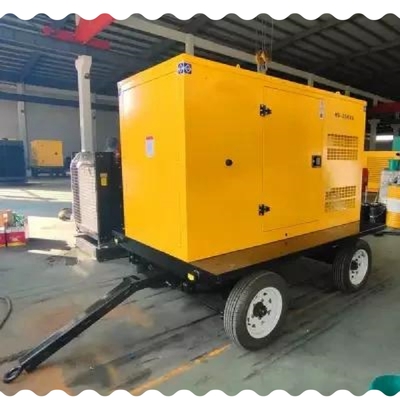

| Type: | Open/silent/weatherproof/trailer Type | Frequency: | 50/60 Hz |
| Engine Model: | WP2.3D40E200 | Alternator: | Stamford/Leroy Somer/Marathon/Wattek |
| Start Mode: | Electric | Displacement: | 3.9 L |
| Rated Voltage: | 400/230 V | ||
| High Light: | Electric Start Weichai Diesel Generator,Electric Start Diesel Generator 33kw,Open Type Weichai Diesel Engine Generator |
||
Why to choose weichai diesel generator?As weichai is one of the biggest diesel engine manufacture in the world now,sold more than 1 million units diesel engines in 2021 And its products are exported to more than 110 countries and regions.
Weichai has global after service network all over the world and enjoy global warranty.
Our Weichai generator adopt original Weichai engine and Stafmord/Marathon/Leroy Somer,etc alternator,with high quality and good price.
| Generator set | Model No. | SW38M5 |
| Standby power | 41KVA/33KW | |
| Rated power | 38KVA/30KW | |
| Output voltage | 230/400 | |
| Rated speed (r/min.) | 1500 | |
| Noise level(7m) | 72dB (silent type) | |
| Power factor | COSΦ=0.8(lagging) | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption | 5.2L/h (Average) | |
| Rated currency(amps) | 36 | |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | |
| Engine | Brand | Weichai |
| Model | WP2.3D40E200 | |
| Original: | China | |
| Cylinders | 4 | |
| Fuel | 0# light diesel | |
| Inter-Cooling | N/A | |
| Compression Ratio | 17.5:1 | |
| Engine Power (prime/standby) | 36KW/40KW | |
| Aspiration | NA | |
| Governor/Class | Mechanical | |
| Bore and stroke | 89×92 mm | |
| Start mode | DC24V electric start | |
| Cylinders Layout | In Line | |
| Displacement | 3.9 L | |
| Alternator | Brand | Leroy Somer |
| Model | TAL-A42-E | |
| Protection | IP23 | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Prime Power | 37.5KVA(30KW) | |
| Original | China | |
| Rated voltage | 400/230 V | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | Smartgen | Model | 6110 |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | Option | √ |
| Single-bearing generator again drops | √ | √ |
| Intelligent LED display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Cooling water tank | √ | √ |
| High-efficient silencer. | √ | √ |
| Circuit breaker | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty: Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)
Weichai engine enjoy worldwise after service offered by Weichai global after service network.
Leroy Somer alternator adopt Stamford technology and enjoy 2 years warranty.
Quick after service and parts are available from Stone Power or distributors in your location.
