Product Details:
Payment & Shipping Terms:
|
| Frequency: | 50/60 Hz | Fuel Consumptiont: | 29L/h (average) |
|---|---|---|---|
| Output Voltage: | 230/400 V | Aspiration: | NA |
| Start Mode: | Electric Start | Standby Power: | 220KVA/176KW |
| Protection: | Low Oil-pressur， High Water Temperature | ||
| High Light: | Canopy Weichai Generator Set,Weichai Generator Set 200KVA,Weichai Diesel Generator Set Soundproof |
||

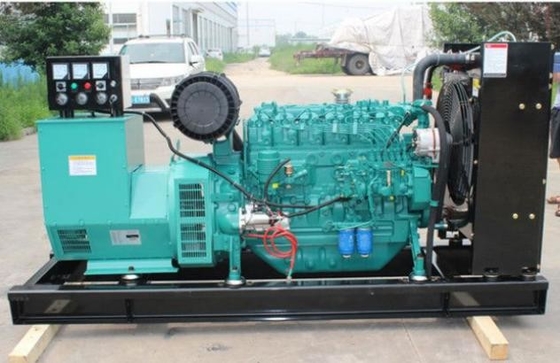

| Generator set | Model No. | SW200E5 |
| Standby power | 220KVA/176KW | |
| Rated power | 200KVA/160KW | |
| Output voltage | 230/400 V | |
| Rated speed (r/min.) | 1500 | |
| Noise level(7m) | 72dB (silent type) | |
| Power factor | COSΦ=0.8(lagging) | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption | 29L/h (average) | |
| Rated currency(amps) | 289 | |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | |
| Engine | Brand | Weichai |
| Model | WP10D200E200 | |
| Origin: | China | |
| Cylinders | 6 | |
| Fuel | 0# light diesel | |
| Compression Ratio | 17:1 | |
| Engine Power (prime/standby) | 182KW/200KW | |
| Aspiration | Turbocharged and aftercooled | |
| Governor/Class | Electronic | |
| Bore and stroke | 126×130 mm | |
| Start mode | DC24V electric start | |
| Cylinders Layout | In Line | |
| Displacement | 9.73 L | |
| Alternator | Brand | Wattek |
| Model | WHI 274H | |
| Protection | IP23 | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Prime Power | 200KVA(160KW) | |
| Original | China | |
| Rated voltage | 400/230 V | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | Smartgen | Model | 6110 |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Standard Accessories | Open type | Silent type |

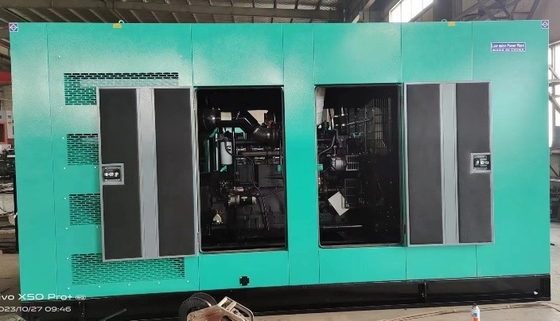

| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | Option | √ |
| Single-bearing generator again drops | √ | √ |
| Intelligent LED display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Cooling water tank | √ | √ |
| High-efficient silencer. | √ | √ |
| Circuit breaker | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
Rated output 400kw/500kva weichai engine leroy somer alternator high quality soundproof genset
Why to choose weichai diesel generator?As weichai is one of the biggest diesel engine manufacture in the world now,sold more than 1 million units diesel engines in 2021 And its products are exported to more than 110 countries and regions.
Weichai has global after service network all over the world and enjoy global warranty.
Our Weichai generator adopt original Weichai engine and Stafmord/Marathon/Leroy Somer,etc alternator,with high quality and good price.
FAQ:
Q1:How about the warranty of weichai series diesel generator set?
Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)
Weichai engine and Stamford/Marathon/Leroy Somer alternator also enjoy worldwise after service offered by their global after service network.
Quick after service and parts are available from Stone Power or distributors in your location.
Q2:If I want to visit your factory,how can I get?
Welcome to visit our factory,our factory located in Nanjing City,China,about 1 hour by car from Nanjing Airport or South Nanjing railway station.We can pick you up at Nanjing Airport or railway station.
