Product Details:
Payment & Shipping Terms:
|
| Frequency:: | 60HZ | Fuel:: | Diesel |
|---|---|---|---|
| Output Type:: | 220V/3 Phase | Standby Power:: | 117KVA/93.5KW |
| Engine Brand And Model:: | Cummins 6BT5.9-G2 | Alternator Brand And Model:: | STAMFORD |
| Inter-Cooling: | Water Inter-cooling | Aspiration: | Turbocharged |
| High Light: | Electric Start Generator Set,60hz Generator Set,1800rpm Generator Set |
||
CUMMINS Diesel Generator Electric Start Mode
|
|
|
||||
| Generator set | Model No. | SC106E6 | |||
| Standby power | 117KVA/93.5KW | ||||
| Rated power | 106KVA/85KW | ||||
| Output voltage | 220/127 V | ||||
| Rated speed (r/min.) | 1800 | ||||
| Noise level(7m) | 75Db (silent type) | ||||
| Power factor | COSΦ=0.8(lagging) | ||||
| Phase/wires | 3 phase 4 wire | ||||
| Start mode | Electric | ||||
| Fuel consumption | 17.9L/h (average) | ||||
| Rated currency(amps) | 279 | ||||
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | ||||
| Engine | Brand | Cummins | |||
| Model | 6BT5.9-G2 | ||||
| Original: | China | ||||
| Cylinders | 6 | ||||
| Fuel | 0# light diesel | ||||
| Inter-Cooling | water inter-cooling | ||||
| Compression Ratio: | 17.5:1 | ||||
|
Engine Power (prime/standby) |
100KW/110KW | ||||
| Aspiration | Turbocharged | ||||
| Governor/Class | Electric | ||||
| Bore and stroke | 102×120 mm | ||||
| Start mode | DC24V electric start | ||||
| Cylinders Layout | In Line | ||||
| Displacement | 5.9 L | ||||
| Alternator | Brand | Leroy Somer | |||
| Model | TAL-A44-D | ||||
| Protection | IP23 | ||||
| Frequency fluctuation | ≤±0.5 % | ||||
| Voltage distortion | ＜4% | ||||
| Power (prime/standby) | 87kw/96kw | ||||
| Original | China | ||||
| Rated voltage | 220/127V | ||||
| Frequency regulation | ≤±0.5 %(stable) | ||||
| Voltage control | AVR | ||||
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | N/A | √ |
| Single-bearing generator again drops | √ | √ |
| Intelligent LED display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Cooling water tank | √ | √ |
| High-efficient silencer. | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
 |

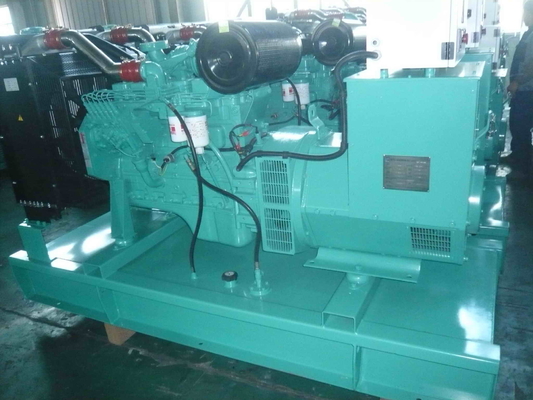

Open Type 2115*890*1530 mm |
|

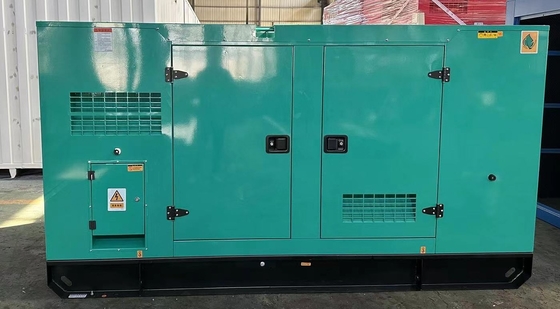

Silent Type 3000*1100*1700 mm or 2800*1200*1700mm |
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)
Perkins engine and Leroy Somer alternator enjoy wroldwise after service offered by Perkins and Leroy Somer global after service network.
Quick after service and parts are available from Stone Power or distributors in your location.
Package & Payment & Delivery Date & Warranty
Package:Plastic Package.
Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 % L / C at sight.
Delivery: 25 days after we get the down payment.
Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
