Product Details:
Payment & Shipping Terms:
|
| Cummins Engine:: | KAT50-G16A | Marathon Alternator:: | 743FSMC438 |
|---|---|---|---|
| Frequency:: | 50HZ/1500rpm | Cooling Method:: | Water |
| Control System:: | Deep Sea 6120 | Fuel Consumption (l/hr)100% Load:: | 3 Pole MCCB |
| Cycle: | 4 Stroke | Voltage: | 6300V |
| High Light: | Cummins Diesel Genset With Alternator,High Voltage CUMMINS Diesel Generator Set,Open Type CUMMINS Generator Set |
||
| Generator set | Model No. | SC1500E5C |
| Standby power | 1763KVA/1410KW | |
| Continous power | 1650KVA/1200KW | |
| Output voltage | 6300V/3 phase | |
| Frequency | 50 Hz | |
| Noise level(7m) | 82dB (silent type) | |
| Power factor | COSΦ=0.8 | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption | 314L/h (100% loading) | |
| Rated currency(amps) | 137.5 | |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | |
| Engine | Brand | Cummins |
| Model | KTA50-G16A | |
| Rated speed (r/min.) | 1500 | |
| Origin: | China | |
| Cylinders Layout | 16 V type | |
| Fuel | 0# light diesel | |
| Compression Ratio: | 14.7:1 | |
| Cooling system | Fan&Radiator | |
|
Engine Power kw (continuous/prime/standby) |
1320kw/1650kw/1760kw | |
| Aspiration | Turbocharged,LTA | |
| Fuel system | Cummins PT pump | |
| Governor/Class | Electric | |
| Bore and stroke | 159×159 mm | |
| Start mode | DC24V electric start | |
| Displacement | 50.3 L | |
| Alternator | Brand | Marathon |
| Model | 743FSMC438 | |
| Rated speed (r/min.) | 1500 | |
| Protection | IP23 | |
| Insluation class | F/H | |
| Power factor | 0.8 | |
| Coupling | Twin bearing | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Continuous power | 1220 kw (105 degree) | |
| Rated voltage | 6300V/3 phase | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | UK Deep sea | Model | DSE 6120 |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | N/A | √ |
| Single-bearing generator again drops | √ | √ |
| Intelligent LED display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Radiator&fan | √ | √ |
| High-efficient muffler | √ | √ |
| Exhaust elbow | √ | √ |
| Storage batteries | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type: 5820*2280*2650 mm 14,500 kg |
|
|
Slient type: 12192*2438*2896 mm 22,500 kg |
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
For continuous rating Cummins genset,warranty is one year unlimted running hours.
Cummins engine and Marathon alternator enjoy global warranty offered by Cummins and Marathon global after service network.
Quick after service and parts are available from Stone Power or distributors in your location.
The STONE Power diesel generator design except for silent type, also have Open type, Container type, Trailer type for your choose:

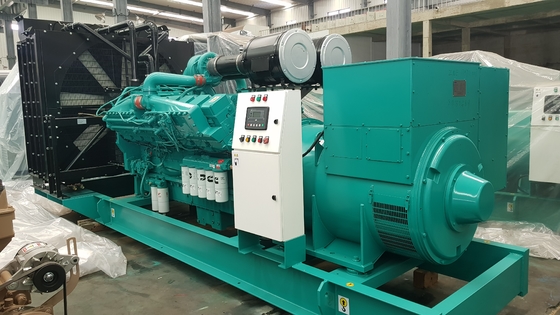

For open type, the diesel genset will be much easier to maintenance and repair, with more durable performance and longer service life, so the cost performance is higher.

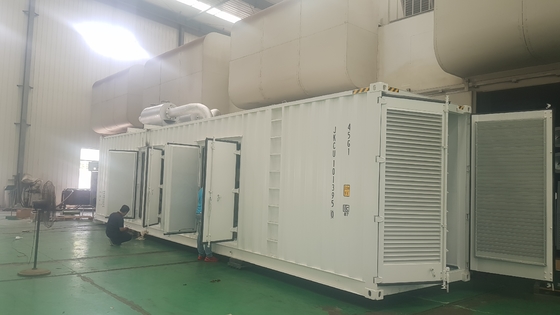

For silent type, diesel generator set, the noise level can be 68-78db(A) @ 7M; with silent canopy, the genset can be soundproof, rainproof, rustproof, dustproof and more safe.
FAQ:
Q1: How is your Package & Payment & Delivery Date & Warranty?
A.1) Package:Plastic Package.
A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
A.3) Delivery: 25 days after we get the down payment.
A.4) Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
Q2: Any advantages about your company?
Answers: SP Brand Diesel Generators
---- Middle-high Positioning;
---- 55days Lead-time;
---- Designed by CAE and CAF Software;
---- Got the ISO and CE certificate;
---- High quality with the best price can help you get more benefit and beat your competitors;
---- Cummins, Perkins, Detuz etc. famous engine brands optional;
----- Open, Soundproof Canopy, Container, Trailer etc. Type for your choose.
Q3: Any catalogue for other brands and power?
YES, WE HAVE! Just Contact Henry for latest Catalogue and Price List freely!
