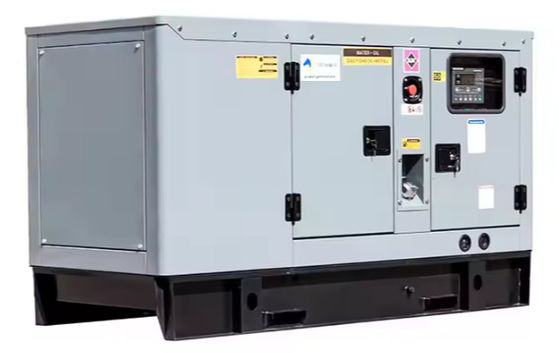

16kw/20kva Prime Rating Deutz BFM3 G1 Diesel Generator Set 50hz 1500 Rpm 400V Super Silent
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Highlight: | 20kva diesel generator set,super silent diesel generator set,1500 rpm diesel generator set |
||
|---|---|---|---|
| Generator set | Model No. | SD20E5 |
| Standby power | 22KVA/17.6KW | |
| Rated power | 20KVA/16KW | |
| Output voltage | 230/400 V | |
| Start mode | Electric | |
| Fuel consumption | g/kw.h | |
| Max currency(amps) | 32 | |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | |
| Engine | Brand | Deutz |
| Model | BFM3 G1 | |
| Origin | China | |
| Rated speed (r/min.) | 1500 | |
| Compression Ratio: | 18.5:1 | |
Engine Power (prime/standby) | 20KW/22KW | |
| Aspiration | naturally aspirated | |
| Governor/Class | Electronic | |
| Bore and stroke | 98×105 mm | |
| Start mode | DC24V electric start | |
| Displacement | 3.17 L | |
| Alternator | Brand | Leroy Somer or Stamford |
| Model | TAL-A40-F or equel |
| Technical parameters of Control Panel: | ||||
| Brand | Smartgen | Model | HGM 6110N |  |
Controller use Smartgen HGM6110N or UK Deepsea/Comap,etc | ||||
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | optional | √ |
| Bottom lifting rings | √ | √ |
| Single-bearing generator again drops | √ | √ |
| Intelligent LED display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Radiator in copper | √ | √ |
| High-efficient muffler | √ | √ |
| Circuit breaker | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery&battery charger | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
| Open type: 2000*650*1200 mm |
| 2000*900*1300 mm |
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)
Deutz engine and Leroy Somer alternator enjoy wroldwise after service offered by Deutz and Leroy Somer global after service network.
Quick after service and parts are available from Stone Power or distributors in your location.
