Product Details:
Payment & Shipping Terms:
|
Cummins Engine Model:: | KTA38-G2B | Stamford Alternator Model:: | LV634C |
---|---|---|---|
Control System:: | DSE6020 / DSE7320 | Frequency:: | 50Hz |
Prime Output:: | 640kw/800kva | Standby Output:: | 704kw/880kva |
High Light: | open type genset,open type diesel generator |

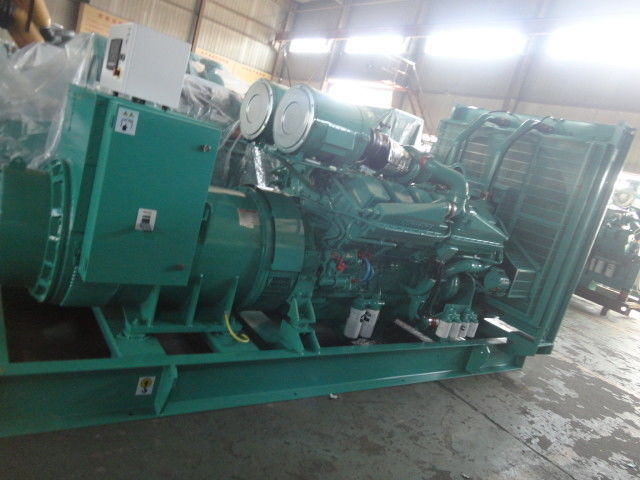

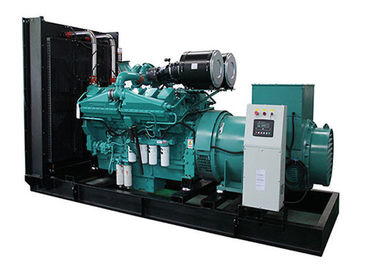

Open type 50HZ 800kva new design Diesel Generator Powered by Cummin
Output Ratings
Gensets Model |
Prime | Standby | ||
kW | kVA | kW | kVA | |
TP880C | 640 | 800 | 704 | 880 |
Dimensions and Weights
Model | SP880C | |
Open | ||
DIM: (mm) |
L | 4450 |
W | 1700 | |
H | 2360 | |
Weights (kg) | 8650 | |
Qty. (Unit) |
20ft GP | 0 |
40 ft GP | 0 | |
40 ft GP HQ | 2 | |
Exhaust port Diameter (mm) | 127 |
Ratings and Performance Data
Engine Brand | Cummins | |
Engine Model | KTA38-G2B | |
Alternator Brand | Stamford | |
Alternator Model | LV634C | |
Control System | DSE6020 / DSE7320 | |
Standard Noise Level@7m | 102 | |
Circuit Breaker Type | 3 Pole MCCB | |
Frequency & Phase | 50Hz & 3PH | |
Engine Speed: RPM | 1500 | |
Fuel Tank Capacity: L | Open | 1910 |
Soundproof | ||
Fuel Consumption (l/hr) | 110% Load | 184 |
100% Load | 167 | |
75% Load | 128 | |
50% Load | 90 | |
Lubricant | 15W40-CF4 Upgrade | |
Total Lubricant Capacity (L) | 135 |
The Features of Cummins 640kw/800kva Diesel Generators:
1. Standard open type is good to working in engine room with ventilation system.
2. The super silent model (up to 50kw) has electronic cooling fan and special design low noise level canopy. which is specialized for low noise level environment, such as office building, villa, museum.
3. Standard soundproof type(IP21) will be working perfectly in the open air
4. All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.
5. All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.
6. 50℃ radiator
7. IP54 (soundproof sets), IP56 (control system)
8. Base fuel tank for at least 8 hours running
9. For friendly experience, all I/O control interface and daily maintenance parts are combined in one side.
STONE Power standard Configuration of Diesel Generator Set Powered by Cummins Engine
1) Cummins engine
2) Stamford alternator(Marathon, Mecc alte Wattek brand for option)
3) Deepsea DSE6020 control panel
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
What is the advantages of your Diesel Generator Set Powered Cummins Engine?
1. International Warranty Service
2. Short delivery time, as we always have Cummins engine in stock
3. With ISO9001&CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator, Marathon alternator or Chinese Aladdin alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load,75% load,100% load and 110% load
Q1: How is your Package & Payment & Delivery Date & Warranty?
A.1) Package: Plastic Package.
A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
A.3) Delivery: 25 days after we get the down payment.
A.4) Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of dispatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
Q2: Any advantages about your company?
Answers: STONE POWER Brand Diesel Generators
---- Middle-high Positioning;
---- 25days Lead-time;
---- Designed by CAE and CAF Software;
---- Got the ISO and CE certificate;
---- High quality with the best price can help you get more benefit and beat your competitors;
---- Cummins, Perkins, Detuz etc. famous engine brands optional.
