Product Details:
Payment & Shipping Terms:
|
| Frequency:: | 60HZ | Fuel:: | Diesel |
|---|---|---|---|
| Output Type:: | AC Three Phase | Rate Power:: | 400KVA/320KW |
| Engine Brand And Model:: | Cummins NTA855-G3 | Alternator Brand And Model:: | Stamford S4L1D-E4 |
| Phase/wires: | 3 Phase 4 Wire | Product Name: | Open Diesel Generator |
| High Light: | Cummins Diesel Genset 400KVA,Electric Start Cummins Diesel Power Generator,AC Three Phase Cummins Diesel Genset |
||
Cummins Open Diesel Generator 400KVA/320KW 60hz 1800rpm Electric Start
|
|
|
||||
| Generator set | Model No. | SC400E6# | |||
| Standby power | 440KVA/352KW | ||||
| Rated power | 400KVA/320KW | ||||
| Output voltage | 220V/3 phase | ||||
| Frequency | 60Hz | ||||
| Noise level(7m) | 78dB (silent type) | ||||
| Power factor | COSΦ=0.8(lagging) | ||||
| Phase/wires | 3 phase 4 wire | ||||
| Start mode | Electric | ||||
| Fuel consumption | 66L/h (average) | ||||
| Rated currency(amps) | 1050 | ||||
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | ||||
| Engine | Brand | Cummins | |||
| Model |
NTA855-G3 |
||||
| Origin: | China | ||||
| Rated speed (r/min.) | 1800 | ||||
| Cylinders | 6 | ||||
| Fuel | 0# light diesel | ||||
| Inter-Cooling | water inter-cooling | ||||
| Compression ratio: | 14.0:1 | ||||
|
Engine Power (prime/standby) |
358KW/399KW | ||||
| Aspiration | Turbocharged/Aftercooled | ||||
| Governor/Class | GAC Electronic | ||||
| Bore and stroke | 140×152mm | ||||
| Start mode | DC24V electric start | ||||
| Cylinders Layout | 6 in Line | ||||
| Emission certificate | Tier 2 | ||||
| Displacement | 14L | ||||
| Alternator | Brand | STAMFORD | |||
| Model | S4L1D-E4 | ||||
| Protection | IP23 | ||||
| Frequency | 60Hz | ||||
| Frequency fluctuation | ≤±0.5 % | ||||
| Voltage distortion | ＜4% | ||||
| Output (prime/standby) | 348kw/376kw | ||||
| Original | China | ||||
| Rated voltage | 220V/3 phase | ||||
| Frequency regulation | ≤±0.5 %(stable) | ||||
| Voltage control | AVR | ||||
| Technical parameters of Control Panel: | ||||
| Brand | Smartgen | Model | 6110 |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | N/A | √ |
| Single-bearing generator again drops | √ | √ |
| Intelligent LED display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Cooling water tank | √ | √ |
| High-efficient silencer. | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|

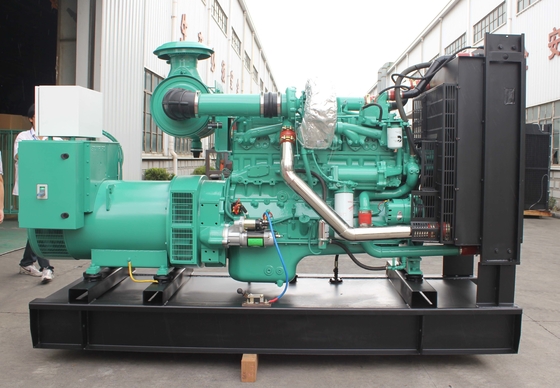

Open Type 3150*1300*2100 mm 3,100 kg |
|

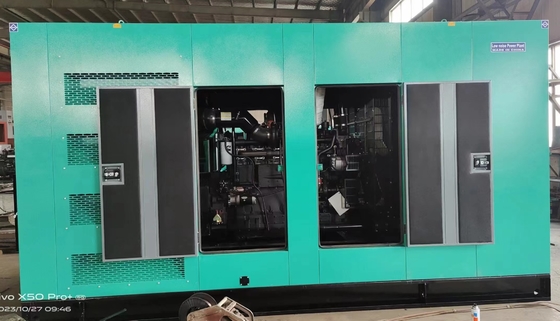

Silent Type 4000*1800*2150 mm 4,350 kg |
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)
Perkins engine and Leroy Somer alternator enjoy wroldwise after service offered by Perkins and Leroy Somer global after service network.
Quick after service and parts are available from Stone Power or distributors in your location.
Package & Payment & Delivery Date & Warranty
Package:Plastic Package.
Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 % L / C at sight.
Delivery: 25 days after we get the down payment.
Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
