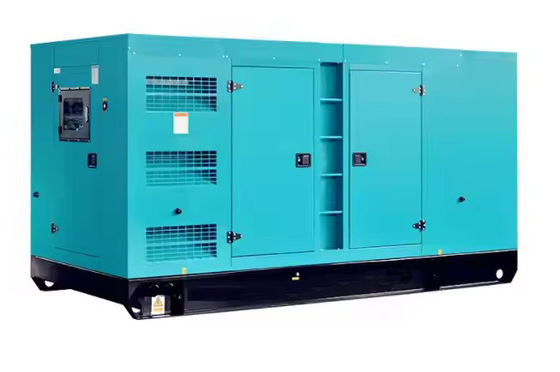

Electric Power Silent Diesel Generator Set Water Cooling Auto Start Silent Operation Performance

Product Description:

The Silent Diesel Generator Set is a reliable and efficient power solution that is perfect for various applications. This high-quality generator features a water cooling system, ensuring optimal performance and longevity. The cooling method of water cooling helps maintain the temperature of the generator, preventing overheating and ensuring smooth operation even during extended use.

Designed for versatility, this generator set comes in a customized color that can be tailored to suit your preferences or match your existing equipment. Whether you need a sleek black finish or a vibrant color to stand out, the generator can be customized to meet your needs.

Equipped with both auto and manual control modes, the Silent Diesel Generator Set offers flexibility in operation. The auto start feature allows for convenient and automatic starting of the generator when power is needed, while the manual mode provides control to start and stop the generator as desired.

The generator set is powered by a 3.9-liter displacement engine, providing ample power to meet your energy requirements. The displacement of the engine ensures efficient fuel combustion and optimal performance, making it a reliable source of power for various applications.

With an auto start system, the Silent Diesel Generator Set offers convenience and ease of use. The auto start feature allows the generator to start automatically in response to power outages or fluctuations, ensuring continuous power supply without manual intervention.

The Silent Diesel Generator Set is a quiet turbine generator kit that provides a mute oil-fueled energy solution for your power needs. Whether you need backup power for your home, business, or outdoor activities, this generator set offers reliable performance with minimal noise levels.

Overall, the Silent Diesel Generator Set is a versatile and efficient power solution that combines reliability, performance, and convenience. With its water cooling system, customized color options, auto/manual control modes, 3.9-liter displacement engine, and auto start system, this generator set is an ideal choice for a wide range of applications.

Diesel Engine Data
Manufacturer:	DCEC Cummins
Model:	4BTA3.9-G2
Prime Power:	50KVA/40KW
Standby Power:	55KVA/44KW
Rated Speed:	1500(r/min)
Cycle:	4 stroke
Cylinder Arrangement:	4 in line
Displacement:	3.9L
Bore and Stroke:	102*120(mm)
Compression Ratio:	17.5:1
Governor Type:	Electric
Start battery voltage:	24V DC
Air Intake System
Air Intake System:	Turbocharged & Aftercooled
Max Intake Restriction:	5kPa
Burning Capacity:	1.98m3/min
Air Flow:	136m3/min
Exhaust System
Exhaust Gas Flow:	4.27m3/min
Exhaust Temperature:	410℃
Max Back Pressure:	10kPa
Fuel System
Fuel System:	Direct injection
100%( Prime Power) Load:	15L/h
50%( Prime Power) Load:	18L/h
Oil System
Total Oil Capacity:	11L
Oil Consumption:	≤0.4g/kwh
Engine Oil Tank Capacity:	8.1-9.5L
Oil Pressure at Rated RPM:	345kPa
Cooling System
Cooling Way:	Water-cooled
Total Coolant Capacity:	8.3L
Thermostat:	82-95℃
Max Water Temperature:	104℃
Alternator Data
Manufacturer:	LEROY SOMER/ STAMFORD/MARATHON
Excitation Mode:	Time harmonic wave excitation
Number of phase and Access Act:	3-phase 4-wire
Connecting Type:	"Y" type connecting
Alternator Capacity:	56KVA
Alternator Efficiencies:	95%
Overload:	(PRP)110% load can run 1h
Protection Level:	IP22-IP23
Insulation Class, Temperature Rise:	H/H
Telephone Influence Factor (TIF):	＜50
THF:	＜2%
Voltage Regulation, Steady State:	≤±1%
Air Cooling Flow:	2.69m3/s
Altitude:	≤1000m
Genset Electrical Performance
Voltage Regulation:	≥±5%
Voltage Regulation, Stead State:	≤±1%
Sudden Voltage Warp (100% Sudden Reduce):	≤+25%
Sudden Voltage Warp (Sudden Increase):	≤-20%
Voltage Stable Time (100% Sudden Reduce):	≤6S
Voltage Stable Time (Sudden Increase):	≤6S
Frequency Regulation, Stead State:	≤5%
Frequency Waving:	≤1.5%
Sudden Frequency Warp (100% SuddenReduce):	≤+12%
Sudden Frequency Warp (Sudden Increase):	≤-10%
FrequencyRecoveryTime(100%SuddenReduce):	≤5S
FrequencyRecoveryTime(Sudden Increase):	≤5S
Options
Engine	Alternator
Heater 2KW & 4KW	Anti Condensation Heater
Battery Charger 3.5A & 7A	Permanent Magnet Generator(PMG)
Water Separator	Drop CT(For Paralleling)
Daily Fuel Tank
Fuel Level Sensor
Control System	Others
Remote Control Panel	Rainproof Type
Auto Transfer Switch (ATS)	Soundproof Type
Paralleling System	Trailer Type
Open Type
Overall Size	Weight
1600(mm)*750(mm)*1200(mm)	700(kg)
Soundproof Type
Overall Size	Weight
2159(mm)*833(mm)*1400(mm)	1100(kg)

Packing and Shipping:

Product Packaging:

The Silent Diesel Generator Set is carefully packaged in a sturdy cardboard box to ensure safe transportation. The generator set is securely placed inside the box with adequate cushioning to prevent any damage during transit. The packaging is designed to protect the product from moisture and impact, ensuring it arrives in perfect condition.

Shipping:

Once the Silent Diesel Generator Set is packaged, it will be shipped using a reliable courier service. The shipping process includes tracking information so you can monitor the delivery status of your order. We strive to dispatch orders promptly to ensure timely delivery to our customers. Rest assured that your Silent Diesel Generator Set will be handled with care during the shipping process.
