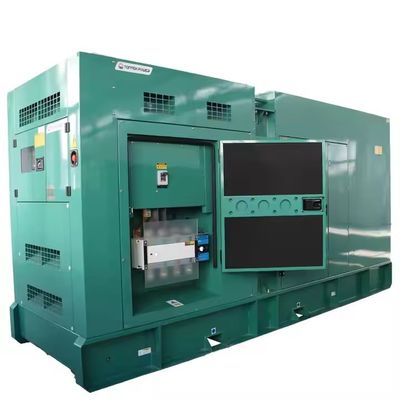

Low Fuel Consumption Muffled Oil Engine Power Unit With Power Factor 0.8 Lagging And Cummins

Product Description:

Featuring Water Cooling technology, this Quiet Turbine Generator Kit ensures optimal performance and efficiency even under challenging conditions. The Electric Power Silent Portable Diesel Generator is equipped with a high-quality Cummins engine, known for its durability and dependability.

Whether for backup power in residential settings, construction sites, or industrial applications, this generator set delivers consistent and stable power output. The Silent Diesel Generator Set is the ideal choice for businesses and individuals looking for a reliable and efficient power solution.

Diesel Generator Set Data
Set Type:	SC388E5
Standby Power:	340KW/425KVA
Prime Power:	310KW/388KVA
Rated Current:	360 (A)
Rated Frequency:	50(Hz)
Start-up time:	5～6(s)
Power Factor:	0.8(Lag)
Rated Voltage:	400/230(V)
Diesel Engine Data
Manufacturer:	CCEC Cummins
Model:	6ZTAA13-G3
Prime/Standby Power:	310KW/325KW
Rated Speed:	1500(r/min)
Cycle:	4 stroke
Cylinder Arrangement:	6 in line
Displacement:	14L
Bore and Stroke:	140*152(mm)
Compression Ratio:	14:01
Governor Type:	Electronic
Start battery voltage:	24V DC
Air Intake System
Air Intake System:	Turbo, Water/Air Cooling
Max Intake Restriction:	6.25kPa
Burning Capacity:	425L/s
Air Flow:	8180L/s
Exhaust System
Exhaust Gas Flow:	1126L/s
Exhaust Temperature:	563℃
Max Back Pressure:	10kPa
Fuel System
Fuel System:	PT type fuel pump
100%( Prime Power) Load:	200g/kwh
50%( Prime Power) Load:	203g/kwh
Oil System
Total Oil Capacity:	38.6L
Oil Consumption:	≤0.24g/kwh
Engine Oil Tank Capacity:	36L
Oil Pressure at Rated RPM:	241-345kPa
Cooling System
Cooling Way:	Water-cooled
Total Coolant Capacity:	85L
Thermostat:	82-93℃
Max Water Temperature:	104℃
Alternator Data
Manufacturer:	LEROY SOMER/STAMFORD/SIEMENS/MARATHON/ENGGA /KEPU
Excitation Mode:	Brushless and self- exciting
Number of phase and Access Act:	3-phase 4-wire
Connecting Type:	"Y" type connecting
Alternator Capacity:	375KVA
Alternator Efficiencies:	95%
Overload:	(PRP)110% load can run 1h
Protection Level:	IP22-IP23
Insulation Class, Temperature Rise:	H/H
Telephone Influence Factor (TIF):	＜50
THF:	＜2%
Voltage Regulation, Steady State:	≤±1%
Air Cooling Flow:	0.8m3/s
Altitude:	≤1000m
Genset Electrical Performance
Voltage Regulation:		≥±5%
Voltage Regulation, Stead State:		≤±1%
Sudden Voltage Warp (100% Sudden Reduce):		≤+25%
Sudden Voltage Warp (Sudden Increase):		≤-20%
Voltage Stable Time (100% Sudden Reduce):		≤6S
Voltage Stable Time (Sudden Increase):		≤6S
Frequency Regulation, Stead State:		≤5%
Frequency Waving:		≤1.5%
Sudden Frequency Warp (100% SuddenReduce):		≤+12%
Sudden Frequency Warp (Sudden Increase):		≤-10%
FrequencyRecoveryTime(100%SuddenReduce):		≤5S
FrequencyRecoveryTime(Sudden Increase):		≤5S
Options
Engine		Alternator
Heater 2KW & 4KW		Anti Condensation Heater
Battery Charger 3.5A & 7A		Permanent Magnet Generator(PMG)
Water Separator		Drop CT(For Paralleling)
Daily Fuel Tank
Fuel Level Sensor
Control System		Others
Remote Control Panel		Rainproof Type
Auto Transfer Switch (ATS)		Soundproof Type
Paralleling System		Trailer Type
Open Type
Overall Size	Weight
3030(mm)*1100(mm)*1850(mm)	2950(kg)

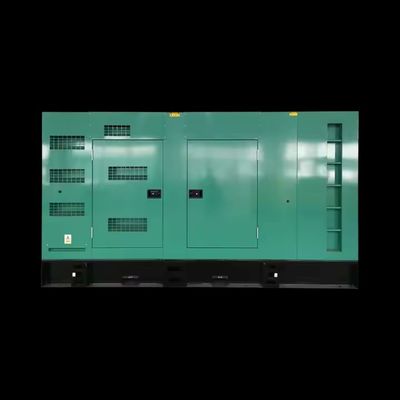

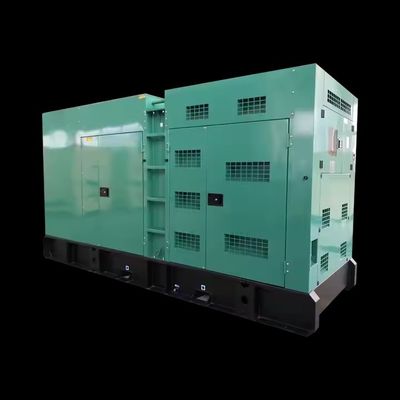

Soundproof Type
Overall Size	Weight
4300(mm)*1800(mm)*2150(mm)	4000(kg)

Packing and Shipping:

Product Packaging:

The Silent Diesel Generator Set is carefully packaged in a sturdy cardboard box to ensure safe transportation. The set is securely fitted inside the box with protective padding to prevent any damage during shipping.

Shipping:

We offer fast and reliable shipping for the Silent Diesel Generator Set. The set will be shipped using a trusted courier service to ensure timely delivery to your location. You will receive a tracking number to monitor the status of your shipment.
