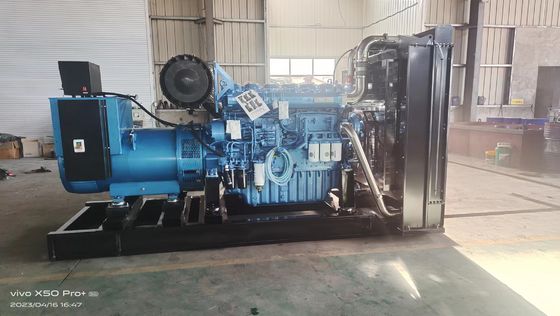

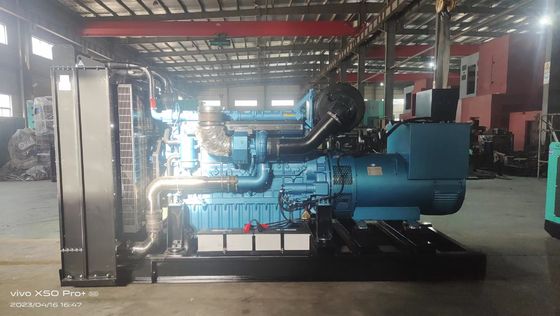

500-3000kg 825KVA/660KW Weichai Diesel Generator Set 50Hz/60Hz Voltage Starting System 24V DC Electric Motor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Fuel Tank Capacity: | 5-1000L | Control System: | Smartgen, Deepsea, |
|---|---|---|---|
| Cooling System: | Water-cooled | Weight: | 500-3000kg |
| Rated Speed: | 1500/1800rpm | Certificate: | ISO, CE |
| Starting System: | 24V DC Electric Starting Motor | Engine Model: | 6M33D725E310 |
| Highlight: | Weichai diesel generator set 3000kg,50Hz 60Hz diesel generator set,24V DC electric motor generator |
||
Product Description:
The Weichai Diesel Generator Set is a reliable and powerful solution for various power generation needs. With a fuel tank capacity ranging from 5 to 1000 liters, this generator set offers extended running times, making it suitable for both short-term and long-term use.
Equipped with a water-cooled cooling system, this generator set ensures efficient and stable performance even under high load conditions. The water-cooled system helps regulate the temperature of the engine, enhancing its durability and reliability.
The control system of the Weichai Diesel Generator Set is designed for convenience and precision. It is compatible with Smartgen and Deepsea control systems, providing users with advanced monitoring and management capabilities. With these control systems, users can easily monitor the performance of the generator set and make necessary adjustments to optimize its operation.
Operating at a rated speed of 1500 or 1800rpm, this generator set delivers consistent and reliable power output. Whether used for standby or prime power applications, the Weichai Diesel Generator Set performs with strong environmental adaptability, making it suitable for a wide range of environments and applications.
The starting system of the Weichai Diesel Generator Set features a 24V DC electric starting motor, ensuring quick and reliable startup in any situation. This starting system is designed for efficiency and ease of use, allowing users to start the generator set with minimal effort.
Designed for efficiency and convenience, the Weichai Diesel Generator Set is available in a container type configuration. This container type design offers easy transportation and installation, making it ideal for temporary or mobile power generation needs. The compact and robust design of the container type generator set ensures reliable performance in various operating conditions.
Applications:
The STONE POWER SW750E5 diesel generator set, originating from CHINA , is a reliable power solution suitable for a wide range of applications. With Strict Quality Control measures in place, this generator set is designed to meet high-quality standards, ensuring its durability and performance.
With Rich Experience in Design , the SW365E5 model is crafted to provide efficient and consistent power supply in various scenarios. Whether used for industrial, commercial, or residential purposes, this generator set can meet the demands of different application occasions.
The versatility of the SW750E5 model makes it a practical choice for different scenarios. Its Smartgen and Deepsea control systems enable seamless operation and monitoring, enhancing user convenience and safety.
Equipped with a Water-cooled Cooling System , the SW750E5 diesel generator set ensures optimal performance even in high-temperature environments, making it suitable for diverse climatic conditions.
With a Fuel Tank Capacity ranging from 5 to 1000 liters and fuel consumption of 156L/h (100% load)and 117L/h (75% load)
, this generator set offers efficient fuel utilization, making it cost-effective and environmentally friendly.
Whether for standby power in critical facilities, prime power in remote locations, or emergency power during outages, the SW750E5 model is designed to deliver reliable performance. The minimum order quantity is 1, and pricing is negotiable, catering to different budget requirements.
With a weight range of 500-3000kg, this generator set offers a balance between portability and power output, making it suitable for both stationary and mobile applications. The STONE POWER SW750E5 diesel generator set is a dependable power solution that can meet various power needs efficiently and effectively.
Technical Datas:
| Generator set | Model No. | SW750E5 |
| Standby power | 825KVA/660KW | |
| Rated power | 750KVA/600KW | |
| Output voltage | 415/240V | |
| Frequency | 50 Hz | |
| Noise level(7m) | 78 dB (silent type) | |
| Power factor | COSΦ=0.8 | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption |
156L/h (100% load) 117L/h (75% load) |
|
| Max currency(amps) | 1148 | |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | |

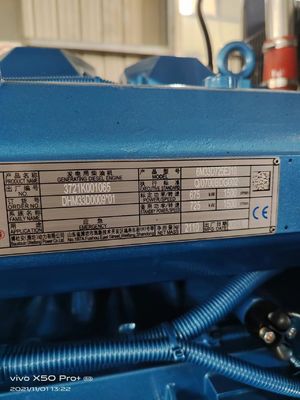

| Engine | Brand | Weichai Baudouin |
| Model | 6M33D725E310 | |
| Rated speed (r/min.) | 1500 | |
| Cylinders layout | 6 cylinder in line | |
| Fuel system | Electronically controlled high pressure common rail | |
| Fuel | 0# light diesel | |
| Oil Capacity | 36/61 L | |
| Coolant capacity | 44 L (engine only) | |
| Compression Ratio: | 15:1 | |
|
Engine Power (prime/standby) |
675KW/725KW | |
| Aspiration | Turbocharged/Intercooling | |
| Governor/Class | ECM control | |
| Bore and stroke | 150×185 mm | |
| Start mode | DC24V electric start | |
| Displacement | 19.6 L | |
| Alternator | Brand | Leroy Somer |
| Model | TAL-A49-B | |
| Protection | IP23 | |
| Insulation class | H | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Output (Cont./Standby) | 750kva/825kva | |
| Rated speed (r/min.) | 1500 | |
| Rated voltage | 415/240 V | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | Smartgen | Model | HGM6110N |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. | N/A | √ |
| Bottom side lifting rings | √ | √ |
| Single-bearing generator again drops | √ | √ |
| Digital type LCD control panel | √ | √ |
| Engine Control Module | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Air circuit breaker cabinet | √ | √ |
| Radiator | √ | √ |
| High-efficient muffler | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery/battery cable/battery charger | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type: 3860*1600*2075 mm 4,800 kg
|
|
Slient type: 4900*2200*2450 mm 7,400 kg
|
