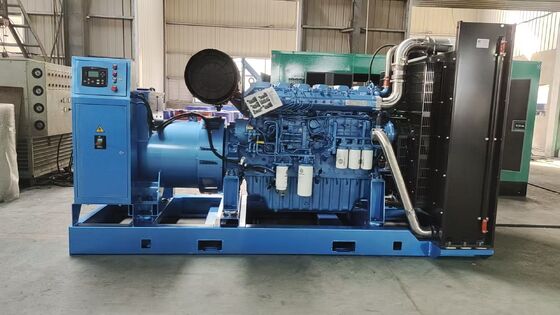

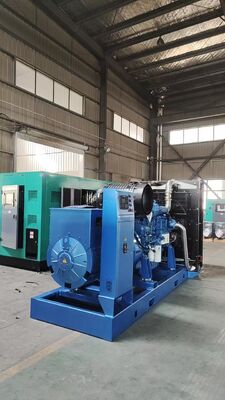

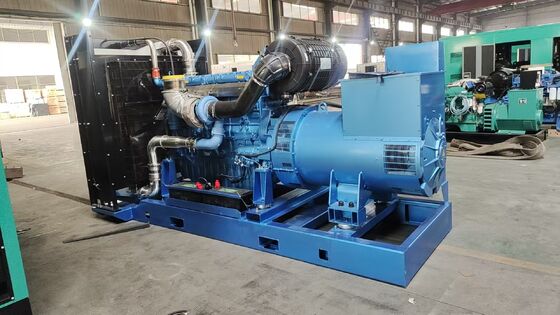

1500/1800rpm Rated Speed Weichai 750KVA/600KW Diesel Generator Set with 6M33D725E310 Engine Model and 15.7L/h Fuel Consumption
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Rated Speed: | 1500/1800rpm | Warranty: | 1000 Hours Or 12 Months |
|---|---|---|---|
| Weight: | 500-3000kg | Fuel Consumption: | 159L/h (100% Load) 110L/h (70% Load) |
| Noise Level: | 78 DB (silent Type) | Voltage: | 400V/230V, 50Hz/60Hz |
| Certificate: | ISO, CE | Starting System: | 24V DC Electric Starting Motor |
| Highlight: | Weichai diesel generator set 1500rpm,Weichai WP4.1D113E200 engine generator,diesel generator set 15.7L/h fuel consumption |
||
Product Description:
he Weichai 6M33D725E310 is a high-performance, heavy-duty diesel engine engineered for demanding industrial and power generation applications. As a flagship model in Weichai’s M-series product lineup, it integrates advanced technologies to deliver exceptional reliability, fuel efficiency, and environmental compliance, making it an ideal power solution for a wide range of equipment and power systems.
Technical Parameters:
| Generator set | Model No. | SW750E5-4G |
| Standby power | 825KVA/660KW | |
| Rated power | 750KVA/600KW | |
| Output voltage | 415/240V | |
| Frequency | 50 Hz | |
| Noise level(7m) | 78 dB (silent type) | |
| Power factor | COSΦ=0.8 | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption |
159L/h (100% load) 110L/h (70% load) |
|
| Max currency(amps) | 1148 | |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | |

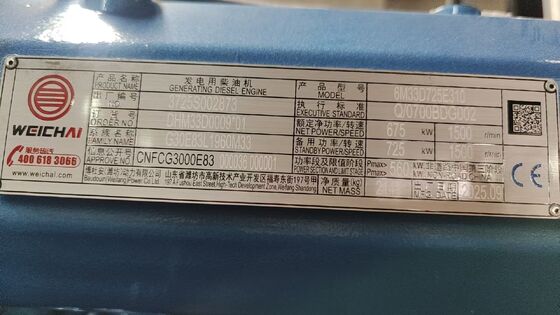

| Engine | Brand | Weichai Baudouin |
| Model | 6M33D725E310 | |
| Rated speed (r/min.) | 1500 | |
| Cylinders layout | 6 cylinder in line | |
| Fuel system | Electronically controlled high pressure common rail | |
| Fuel | 0# light diesel | |
| Oil Capacity | 36/61 L | |
| Compression Ratio: | 15:1 | |
|
Engine Power (prime/standby) |
675KW/725KW | |
| Aspiration | Turbocharged/Intercooling | |
| Governor/Class | ECM control | |
| Bore and stroke | 150×185 mm | |
| Start mode | DC24V electric start | |
| Displacement | 19.6 L | |
| Alternator | Brand | Leroy Somer |
| Model | TAL-A49-B | |
| Protection | IP23 | |
| Insulation class | H | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Output (Prime/Standby) | 750kva/825kva | |
| Rated speed (r/min.) | 1500 | |
| Rated voltage | 415/240 V | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | Smartgen | Model | HGM6110CAN-4G |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • Fuel level monitor/alarm • Remote genset monitor and control through app on cellphone |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. | N/A | √ |
| Single-bearing generator again drops | √ | √ |
| Digital type LCD control panel | √ | √ |
| Engine Control Module | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Air circuit breaker cabinet | √ | √ |
| Radiator | √ | √ |
| High-efficient muffler | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery/battery cable/battery charger | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type: 3860*1600*2075 mm 4,800 kg
|
|
Slient type: 4900*2200*2450 mm 7,400 kg
|
Applications:
STONE POWER diesel generator set model SW100E5 is a high-quality product of Chinese Famous Brand, Weichai. With a place of origin in CHINA, this generator set is designed to provide reliable power solutions for a variety of applications.
One of the key attributes of the SW100E5 generator set is its long service life, making it suitable for both prime and standby power applications. The engine model WP4.1D113E200 coupled with a water-cooled cooling system ensures optimal performance even in challenging environments.
With a standby power of 110KVA/88KW and a power range of 20-2000kW, the SW100E5 generator set is versatile and can be used in a wide range of scenarios. Whether it is for industrial, commercial, or residential use, this generator set offers reliable power generation.
The SW100E5 generator set is certified with ISO and CE, ensuring compliance with international quality standards. Customers can rest assured of the product's quality and safety.
Whether you need a reliable power backup solution for your business or looking for a dependable power source for your remote location, the STONE POWER SW100E5 diesel generator set is the perfect choice. With a minimum order quantity of 1 and a negotiable price, you can get a quote now and experience the benefits of this high-quality generator set.
Don't miss out on the opportunity to invest in a durable and efficient power solution. Contact us today to learn more about the SW100E5 generator set and secure your power needs with confidence.
Support and Services:
Our Weichai Diesel Generator Set product comes with comprehensive Product Technical Support and Services to ensure smooth operation and customer satisfaction. Our technical support team is available to assist with any product-related inquiries, troubleshooting, and maintenance needs. We also provide training programs to equip customers with the necessary knowledge and skills to operate and maintain the generator set efficiently.
Packing and Shipping:
Product Packaging:
The Weichai Diesel Generator Set is carefully packaged to ensure safe delivery. Each component is securely wrapped and placed in a sturdy cardboard box with foam padding to prevent any damage during transit.
Shipping:
We ship our products worldwide using reliable courier services. The Weichai Diesel Generator Set will be shipped within 1-3 business days after the order is placed. Customers will receive a tracking number to monitor the delivery status of their package.
