50KVA Perkins 40 Kw Diesel Generator 1103A-33TG2 With Alternator Leroy Somer

50KVA Perkins 40 Kw Diesel Generator 1103A-33TG2 With Alternator Leroy Somer
50KVA Perkins 40 Kw Diesel Generator 1103A-33TG2 With Alternator Leroy Somer 50KVA Perkins 40 Kw Diesel Generator 1103A-33TG2 With Alternator Leroy Somer

Large Image :  50KVA Perkins 40 Kw Diesel Generator 1103A-33TG2 With Alternator Leroy Somer Get Best Price

Product Details:
Place of Origin: Shanghai of China
Brand Name: STONE POWER
Certification: CE, ISO, UL
Model Number: SP50M5
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Delivery Time: 30 DAYS
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 200 SETS / MONTH
Detailed Product Description
Frequency:: 50HZ Fuel:: Diesel
Output Type:: AC Three Phase Rate Power:: 50KVA/40KW
Engine Brand And Model:: Perkins1103A-33TG2 Alternator Brand And Model:: Leroy Somer
Type: Silent(super Silent)or Open,Silent/Open,Silent /Open Type Engine: Perkins
Product Name: 50kva Perkins Diesel Generator Set Speed: 1500/1800rpm,1500rpm
High Light:

Leroy Somer Perkins Diesel Generator

,

50KVA Perkins Diesel Generator

,

40 Kw Diesel Generator



50hz perkins  diesel genset  with alternator Leroy Somer



Generator set Model No. SP50M5
Standby power 55KVA/44kw
Rated power 50KVA/40kw
Output voltage 230/400
Rated speed (r/min.) 1500
Noise level(7m) 65dB



Power factor

COSΦ=0.8(lagging)
Phase/wires 3 phase 4 wires
Start mode Electric
Fuel consumption 6.2L/h (100%Load)
Rated currency(amps) 29
Protection Low oil-pressure, High water temperature, Over-speed, Over-current.
Engine Brand Perkins
Model 1103A-33TG2
Cylinders 3
Fuel 0# light diesel
Inter-Cooling water inter-cooling
Engine Power 55KW(60.5kw)
Aspiration Naturally aspirated
Governor/Class Mech
Bore and stroke 105×127 mm
Start mode DC24V electric start
Cylinders Layout Line
Displacement 3.3L
Rated speed (r/min.) 1500
Brand Leroy Somer
Alternator Model TAL-A42-G
Protection IP23
Frequency fluctuation ≤±0.5 %
Voltage distortion <4%
Power 50KVA(40KW)
Original China
Rated voltage 380/220 V
Frequency regulation ≤±0.5 %(stable)
Voltage control AVR



Technical parameters of Control Panel:
Brand Deep Sea Model DSE6020 50KVA Perkins 40 Kw Diesel Generator 1103A-33TG2 With Alternator Leroy Somer 0
Function:

• Start or Stop Generator set manually / automatically

• Open controller output can be defined as Pre-heat/Idle output

• High Coolant temperature protection

• Low Oil pressure protection

• Over load protection

• Generator over/under frequency protection

• Generator over/under/unbalance voltage Protection

• Over speed protection

• AMF

Note:Indicate this function depend on the set points of the controller in field.



Optional accessories
Engine • Heater • Battery Charger
Alternator • Permanent Magnet Generator(PMG)
Control system • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System
Fuel system • Daily Fuel Tank • Water Separator • Fuel Level Sensor
Others • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts



Standard Accessories Open type Silent type
Sound-proof & Weather-proof Canopy N/A
Daily base fuel tank. 8 hours capacity N/A
Single-bearing generator again drops
Intelligent LED display control panel
Speed governor
Electric start and 12v charger
Standard air filter, oil filter, fuel filter
Cooling water tank
High-efficient silencer.
Exhaust elbow
Storage battery
Steel base-frame against vibration
Soft pipe for fuel and handle for lube going-out
Operation& Maintenance manual.



 Drawing Dimension
50KVA Perkins 40 Kw Diesel Generator 1103A-33TG2 With Alternator Leroy Somer 1

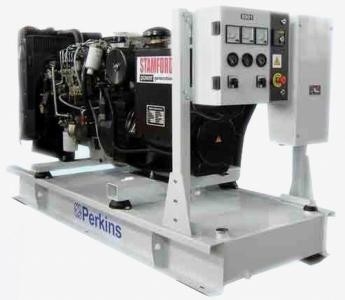

Open Type

2600*1050*1550 mm

50KVA Perkins 40 Kw Diesel Generator 1103A-33TG2 With Alternator Leroy Somer 2

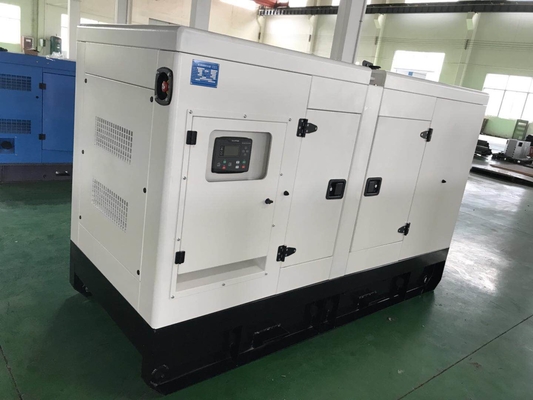

Silent Type

4562*1523*2557 mm

4778 kg













Remark:



Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.



Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.



Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.



We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)

Perkins engine and Leroy Somer alternator enjoy wroldwise after service offered by Perkins and Leroy Somer global after service network.



Quick after service and parts are available from Stone Power or distributors in your location.







Package & Payment & Delivery Date & Warranty

Package:Plastic Package.

Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 % L / C at sight.

Delivery: 25 days after we get the down payment.

Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
