⁠PERKINS Generator 10KVA/8KW Rate Power Leroy Somer Ambient temperature -25°C to 50°C.

I'm Online Chat Now
China Nanjing Stone Power CO.,LTD certification
China Nanjing Stone Power CO.,LTD certification
We are glad to get your goods about 500kva. the quality is good, our client is satisfy with it, it was really a good cooperation!

—— Pattawit

We are from spain, we visit this facotory and bought 2 gensets from them, we used for a several months, the quality is good, nice cooperation!

—— Rodrigo Calabrano

⁠PERKINS Generator 10KVA/8KW Rate Power Leroy Somer Ambient temperature -25°C to 50°C.

⁠PERKINS   Generator 10KVA/8KW Rate Power Leroy Somer Ambient temperature -25°C to 50°C.
⁠PERKINS   Generator 10KVA/8KW Rate Power Leroy Somer Ambient temperature -25°C to 50°C. ⁠PERKINS   Generator 10KVA/8KW Rate Power Leroy Somer Ambient temperature -25°C to 50°C.

Large Image :  ⁠PERKINS Generator 10KVA/8KW Rate Power Leroy Somer Ambient temperature -25°C to 50°C. Get Best Price

Product Details:
Place of Origin: Shanghai of China
Certification: CE, ISO, UL
Model Number: SP10M5
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Delivery Time: 30 DAYS
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 200 SETS / MONTH
Detailed Product Description
Frequency:: 50HZ Fuel:: Diesel
Output Type:: 230V/400 Standby Power:: 11KVA/9kw
Engine Brand And Model:: Perkins 403D-11G Alternator Brand And Model:: Leroy Somer
Inter-Cooling: Water Inter-cooling Aspiration: Turbocharged/ Aftercooled
Rated Power: 10kva Perkins Diesel Generator Set



PERKINS Engine  Rate Power  Over Speed Protection


Generator set Genset Model SP10M5
Standby power 11KVA/9KW
Rated power 10KVA/8KW
Output voltage 230v/400v
Frequency 50 Hz
Noise level(7m) 77dB(A)/64dB(A)


Power factor

Phase/wires 3 phase 4 wires
Start mode Battery
Fuel consumption 2.6L/h (100%Load)
Ambient temperature -25°C to 50°C. The coolant heater is needed when the temperature is below 5°C
Humidity Less than 80%
Altitude Below one thousand (1000) meters
Max currency(amps) 16
Protection Low oil-pressure, High water temperature, Over-speed, Over-current.
Engine Brand Perkins
Model 403D-11G
Dimensions 776x449x700mm
Cylinders 3
Cycle 4 stroke
Fuel 0# light diesel
Compression ratio 23:1
Stand Power 9.5 kw
Prime Power 8.6 kw
Type of injection Indirect injection
Intake system Natural aspirated
Intake resistance ≤6.4kPa
Governor/Class Mech
Bore and stroke 77×81 mm
Start mode DC24V electric start
Cooling system Water cooled (by radiator)
Cylinders Layout Line
Displacement 1.13L
Rated speed (r/min.) 1800



Brand Leroy Somer
Model TAL-A40-C
Frequency 50Hz
Phase 3 phase
windings 100% copper
Exciter Brushless
wiring 12 wires
Terminals 6 or 12
Insulation class H
Altitude ≤1000m
Overspeed 2250rpm
Protection IP23
Air Flow 0.15m³/s
Frequency fluctuation ≤±0.5 %
Voltage regulation ±0.5%
Voltage distortion <4%
Total harmonic TGH/THC <4%
Telephone Interference THF<2%;TIF<50
Prime Power 10.4kw/13kva
Original China
Rated voltage 240/120V switchable
Frequency regulation ≤±0.5 %(stable)
Voltage control AVR


Technical parameters of Control Panel:

Deep Sea








• Start or Stop Generator set manually / automatically

• Open controller output can be defined as Pre-heat/Idle output

• High Coolant temperature protection

• Low Oil pressure protection

• Over load protection

• Generator over/under frequency protection

• Generator over/under/unbalance voltage Protection

• Over speed protection


Note:Indicate this function depend on the set points of the controller in field.


Optional accessories
Engine • Heater • Battery Charger
Alternator • Permanent Magnet Generator(PMG)
Control system • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System
Fuel system • Daily Fuel Tank • Water Separator • Fuel Level Sensor
Others • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts


Standard Accessories Open type Silent type
Sound-proof & Weather-proof Canopy N/A
Daily base fuel tank. 8 hours capacity N/A
Single-bearing generator again drops
Intelligent LED display control panel
Speed governor
Electric start and 12v charger
Standard air filter, oil filter, fuel filter
Cooling water tank
High-efficient silencer.
Exhaust elbow
Storage battery
Steel base-frame against vibration
Soft pipe for fuel and handle for lube going-out
Operation& Maintenance manual.


 Drawing Dimension
⁠PERKINS   Generator 10KVA/8KW Rate Power Leroy Somer Ambient temperature -25°C to 50°C. 0

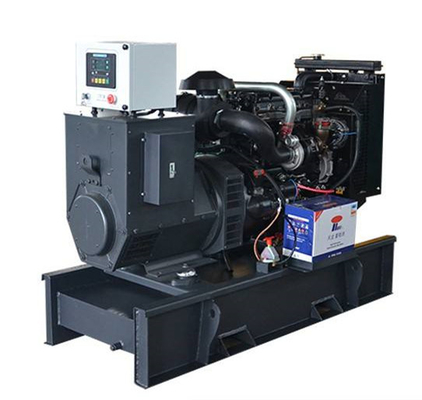

Open Type



⁠PERKINS   Generator 10KVA/8KW Rate Power Leroy Somer Ambient temperature -25°C to 50°C. 1

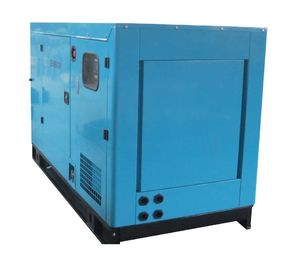

Silent Type

1832*830*1308 mm










Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.


Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.


Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.


We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)

Perkins engine and Leroy Somer alternator enjoy wroldwise after service offered by Perkins and Leroy Somer global after service network.


Quick after service and parts are available from Stone Power or distributors in your location.




Package & Payment & Delivery Date & Warranty

Package:Plastic Package.

Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 % L / C at sight.

Delivery: 25 days after we get the down payment.

Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
