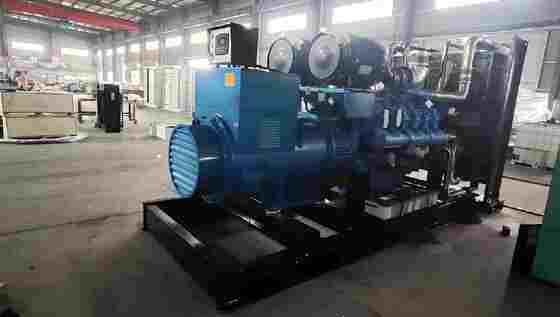

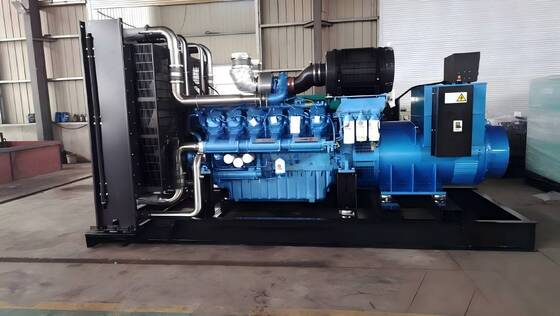

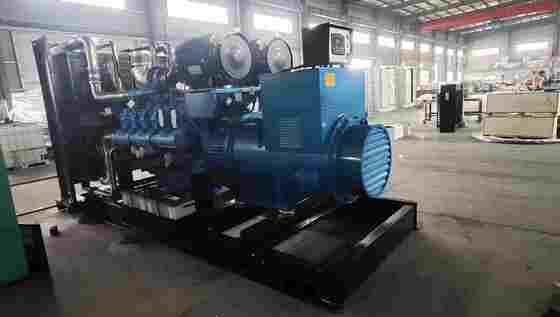

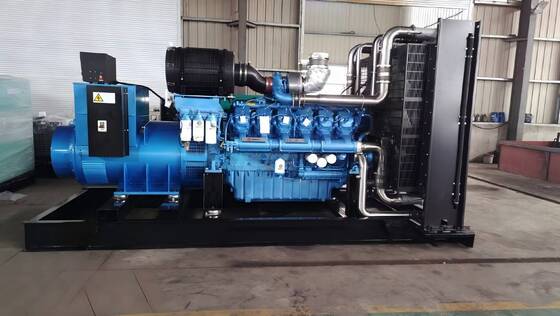

800KW Weichai Baudouin Diesel Generator Set 60Hz Leroy Somer Standby Supply 880KW
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Engine Brand: | Weichai Baudouin | Alternator Brand: | Leroy Somer |
|---|---|---|---|
| Frequency: | 60Hz | Rated Current: | 1476 |
| Rated Speed: | 1800rpm | Cylinders Layout: | 12 Cylinders, V Type |
| Compression Ratio:: | 15.7:1 | Bore And Stroke: | 150×150 Mm |
800KW Weichai Baudouin Diesel Generator Set 60Hz Leroy Somer Standby Supply 880KW
800kW Weichai Baudouin diesel genset, 60Hz, fitted with Leroy Somer alternator. Standby power 880kW for emergency backup. It adopts 12M26D engine, standalone unit without parallel panel.
| Generator set | Model No. | SW1000E6 |
| Standby power | 1100KVA/880KW | |
| Rated power | 1000KVA/800KW | |
| Output voltage | 400V/3 phase | |
| Frequency | 60 Hz | |
| Noise level(7m) | 75dB (silent type) | |
| Power factor | COSΦ=0.8 | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption | 157L/h | |
| Rated current(amps) | 1476 | |
| Protection |
Low oil-pressure, High water temperature, Over-speed, Over-current. |
|
| Engine | Brand | Baudouin |
| Model | 12M26D1012E201 | |
| Rated speed (r/min.) | 1800 | |
| Cylinder Layout | 12 cylinders,V type | |
| Fuel | 0# light diesel | |
| Oil Capacity | 109L | |
| Inter-Cooling | water inter-cooling | |
| Compression Ratio: | 15.7:1 | |
|
Engine Power (prime/standby) |
920KW/1012KW | |
| Aspiration | Turbocharged/Aftercooled | |
| Governor/Class | Electronic | |
| Bore and stroke | 150×150 mm | |
| Start mode | DC24V electric start | |
| Cylinders Layout | V | |
| Displacement | 31.8L | |
| Alternator | Brand | Leroy Somer |
| Model | TAL-A49-E | |
| Protection | IP23 | |
| Insulation class | H | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Output (Prime/Standby) | 829/912.5 KW | |
| Frequency | 60 Hz | |
| Rated voltage | 400V/230V | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | UK Deepsea | Model | 6020 |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Integrated daily base fuel tank. | N/A | √ |
| Analog type control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Circuit breaker cabinet | √ | √ |
| Cooling water tank | √ | √ |
| High-efficient silencer. | √ | √ |
| Exhaust flexible pipes | √ | √ |
| Storage battery | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type: 4350*1800*2250 mm (without fuel tank) 6,800 kg |
|
Silent type: 6060*2440*2730 mm 11,800 kg |
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of 24 months or 2,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)
Baudouin Weichai engine and Leroy Somer alternator enjoy wroldwise after service offered by Baudouin Weichai and Leroy Somer global after service network.
Quick after service and parts are available from Stone Power or distributors in your location.
FAQ:
Q:What is the rated power of this generator?
A:800kW / 1000kVA diesel generator.
Q:Do you provide CE certificate?
A:Yes, we have CE certificate.
Q:What’s the warranty period?
A:The genset warranty is 24 months or 2000 running hours which comes firstly.
Q:Can we customize the control panel?
A: Smargen or Deepsea is within the optional range.
Q:How long is the lead time?
A:It is to be confirmed in different situations.
