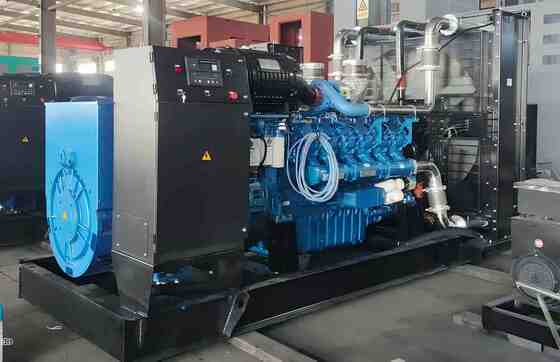

1000KW Weichai Diesel Generator Set 50Hz Wattak Alternator with Synchronization Panel
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Engine Brand: | Weichai Baudouin | Alternator Brand: | Wattak |
|---|---|---|---|
| Frequency: | 50Hz | Power Factor: | COSΦ=0.8 |
| Engine Speed: | 1500rpm | Cylinders Layout: | 12 Cylinder, V Type |
| Compression Ratio:: | 15:1 | Bore And Stroke: | 150×185 Mm |
1000KW Weichai Diesel Generator Set 50Hz
Wattak Alternator with Synchronization Panel
1000kW, 50Hz Weichai diesel generator set, fitted with Wattek alternator, equipped with synchronization control panel for parallel operation.
| Generator set | Model No. | SW1250E6 |
| Standby power | 1320KVA/1100KW | |
| Rated power | 1250KVA/1000KW | |
| Output voltage | 480V | |
| Frequency | 50 Hz | |
| Noise level(7m) | 82 dB (silent type) | |
| Power factor | COSΦ=0.8 | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption |
256 L/h (full load) 190 L/h (75% load) |
|
| Max current(amps) | 1654 | |
| Protection |
Low oil-pressure, High water temperature, Over-speed, Over-current. |
|
| Engine | Brand | Weichai Baudouin |
| Model | 12M33D1265E201 | |
| Engine speed | 1500 rpm | |
| Cylinders layout | 12 cylinder,V type | |
| Fuel | 0# light diesel | |
| Fuel consumption | 195g/kw.h | |
| Oil Capacity (low/high) | 117/155 L | |
| Compression Ratio: | 15:1 | |
|
Engine Power (prime/standby) |
1150KW/1265KW | |
| Aspiration | Turbocharged/Aftercooled | |
| Governor/Class | Electronic | |
| Bore and stroke | 150×185 mm | |
| Start mode | DC24V electric start | |
| Displacement | 39.2L | |
| Alternator | Brand | Wattek |
| Model | WHI 6F | |
| Insulation class | H | |
| Protection | IP23 | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Output (Cont./Standby) | 1250KVA/1375KVA | |
| Frequency | 60 Hz | |
| Rated voltage | 480V/3 phase | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | DEIF | Model | AGC150 PMS Lite |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF • Automatic synchronization |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | N/A | √ |
| Analog type control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Air breaker 2000A/3P/motorized | √ | √ |
| Radiator | √ | √ |
| High-efficient silencer. | √ | √ |
| Exhaust flexible pipes | √ | √ |
| Storage battery&trickle charger | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type: 4350*1800*2200 mm 7,800 kg |
|
Slient type: 6060*2440*2730 mm 12,800 kg |
Remarks:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of 24 months or 2,000 running hours warranty which comes first
Weichai Baudouin engine enjoy worldwide after service.
Quick after service and parts are available from Stone Power or distributors in your location.
FAQ
Q:What is the rated power of this generator?
A:1000kW / 1250kVA diesel generator.
Q:Do you provide CE certificate?
A:Yes, we have CE certificate.
Q:What’s the warranty period?
A:The genset warranty is 24 months or 2000 running hours which comes firstly.
Q:Can we customize the control panel?
A: Smargen or Deepsea is within the optional range.
Q:How long is the lead time?
A:It is to be confirmed in different situations.
