292KW Weichai Diesel Generator Set 50Hz Leroy Somer with Fuel Tank 320KW for Standby Usage
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Engine Brand: | Weichai | Alternator Brand: | Leroy Somer |
|---|---|---|---|
| Frequency: | 50Hz | Rated Current: | 508 |
| Rated Speed: | 1800rpm | Cylinders Layout: | 6 In Line |
| Compression Ratio:: | 16:1 | Bore And Stroke: | 127×165 Mm |

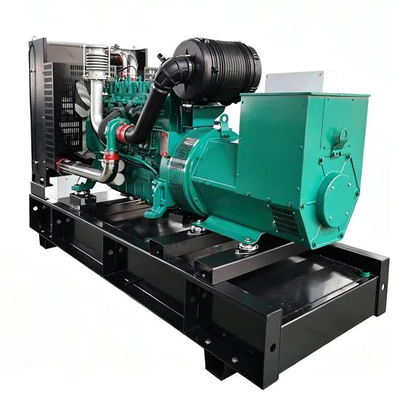

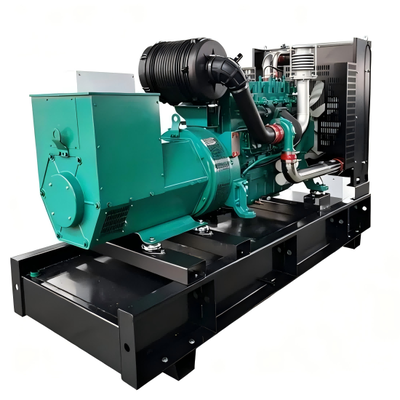

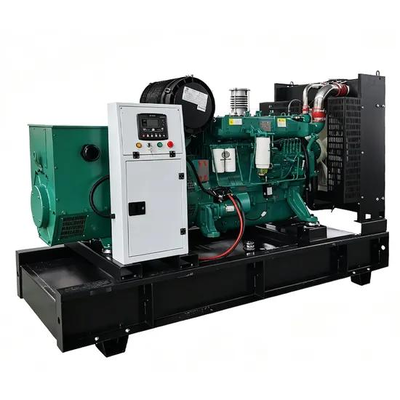

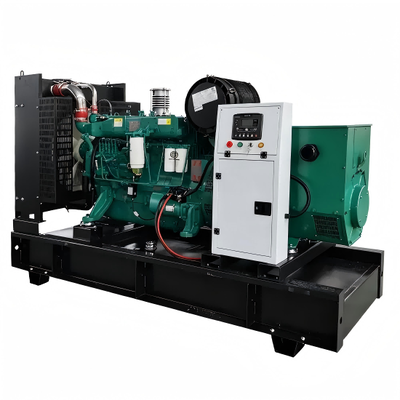

292KW Weichai Diesel Generator Set 50Hz Leroy Somer with Fuel Tank 320KW for Standby Usage
292kW Weichai diesel generator set, 50Hz, equipped with Leroy Somer alternator. Standby power 320kW for emergency backup. It is open type with sealed base integrated fuel tank, no parallel synchronizing control panel.
| Generator set | Model No. | SW365E5 |
| Standby power | 400KVA/320KW | |
| Rated power | 365KVA/292KW | |
| Output voltage | 240/415 V | |
| Frequency | 50 Hz | |
| Noise level(7m) | 72dB (silent type) | |
| Power factor | COSΦ=0.8(lagging) | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption | 51.5L/h (Average) | |
| Rated current(amps) | 508 | |
| Protection |
Low oil-pressure, High water temperature, Over-speed, Over-current. |
|
| Engine | Brand | Weichai |
| Model | WP13D385E200 | |
| Rated speed (r/min.) | 1500 | |
| Cylinders layout | 6 in line | |
| Fuel | 0# light diesel | |
| Inter-Cooling | Turbo charged/After-cooling | |
| Compression Ratio | 16:1 | |
| Engine Power (prime/standby) | 350KW/385KW | |
| Aspiration | Direct injection | |
| Governor/Class | Electronic | |
| Bore and stroke | 127×165 mm | |
| Start mode | DC24V electric start | |
| Displacement | 12.54L | |
| Alternator | Brand | Leroy Somer |
| Model | TAL-A46-H | |
| Protection | IP23 | |
| Insulation class | H | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Output (prime/standby) | 292kw/320kw | |
| Rated speed (r/min.) | 1500 | |
| Rated voltage | 415/240 V | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | Smartgen | Model | HGM 6110N |  |
| Function: | ||||
|
► Manual & automatic start / stop control for generator set ► Programmable output terminals for preheat & idle function ► Shutdown protection against high coolant temperature ► Shutdown protection against low engine oil pressure ► Generator overload protection ► Overfrequency & underfrequency protection ► Overvoltage, undervoltage & voltage unbalance protection for generator output ► Emergency shutdown protection for overspeed fault ► Real-time battery voltage monitoring with high/low voltage alarm ► Cumulative running hours display and historical fault record storage |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | √ | √ |
| Intelligent LCD display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Radiator | √ | √ |
| High-efficient muffler | √ | √ |
| Circuit breaker | √ | √ |
| Exhaust flexible pipes | √ | √ |
| Storage battery | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type: 3200*1150*2100mm (with fuel tank) 3,000 kg |
|
Silent type: 4000*1700*2000 mm 4,000 kg |
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty: Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)
Weichai engine and Leroy Somer alternator enjoy worldwide after service offered by Weichai and Leroy Somer global after service network.
Quick after service and parts are available from Stone Power or distributors in your location.
FAQ:
Q:What is the rated power of this generator?
A:292kW / 365kVA diesel generator.
Q:Do you provide CE certificate?
A:Yes, we have CE certificate.
Q:What’s the warranty period?
A:The genset warranty is 12 months or 1000 running hours which comes firstly.
Q:Can we customize the control panel?
A: Smargen or Deepsea is within the optional range.
Q:How long is the lead time?
A:It is to be confirmed in different situations.
