Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 400KW/500KVA | Application: | Factory/Hospital/Construction/Building/Shopping Center |
|---|---|---|---|
| Frequency: | 50/60 Hz | Engine Model: | WP13D490E310 |
| Alternator: | Stamford/Leroy Somer/Marathon/Wattek | Voltage: | Switchable |
| Standby Power: | 400KW/500KVA | Dimension: | 2990*1250*1900 Mm (open Type) |
| Displacement: | 12.54 L | ||
| High Light: | Muffler Open Type Diesel Generator Set,500kva Weichai Diesel Genset,Open Type Weichai Diesel Generator |
||

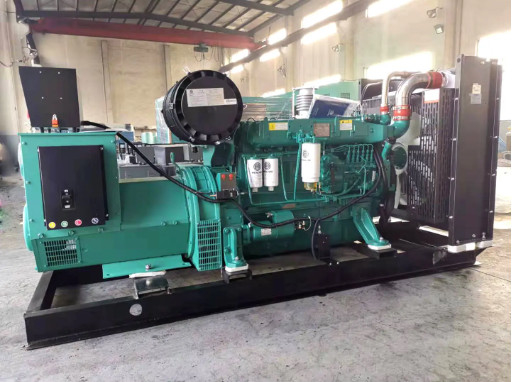

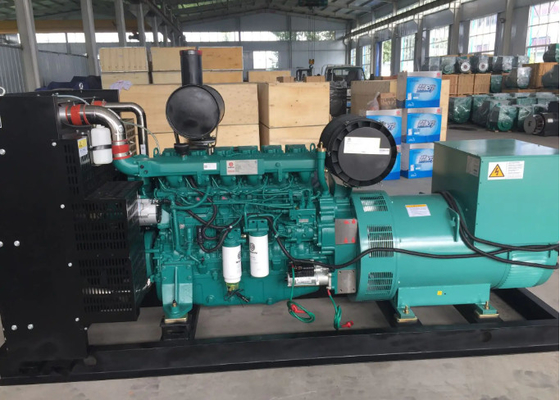

Prime power 500kva/400kw weichai diesel genset open type with 8 hours fuel base tank muffler stamford alternator
Why to choose weichai diesel generator?As weichai is one of the biggest diesel engine manufacture in the world now,sold more than 1 million units diesel engines in 2021.Weichai has global after service network all over the world and enjoy global warranty.
Famous brand+Good quality+Global warranty+Competitive price,that is the advantage of Weichai generator.
Weichai website:www.weichai.com
Technical parameters:
| Generator set | Generator model | SW500E5 |
| Standby power | 550KVA/440KW | |
| Rated power | 500KVA/400KW | |
| Output voltage | 400V/ 3 phase | |
| Rated speed (r/min.) | 1500 or 1800 | |
| Noise level(7m) | 77dB (silent type) | |
| Power factor | COSΦ=0.8(lagging) | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption | 77.6 L/h (Average) | |
| Rated currency(amps) | 720 A | |
| Protection function | Low oil-pressure, High water temperature, Over-speed, Over-current. | |

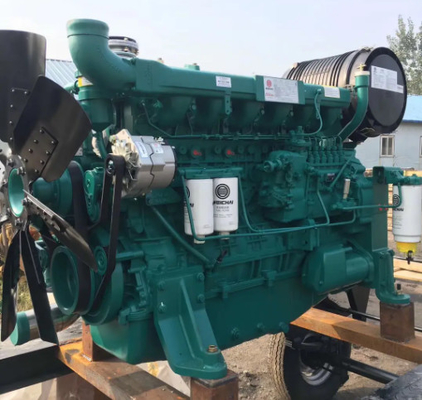

| Engine | Engine Brand | Weichai |
| Model | WP13D490E310 | |
| Original: | China | |
| Cylinders | 6 | |
| Fuel | 0# light diesel | |
| Inter-Cooling | Turbo charged,after cooling | |
| Compression Ratio | 17.0:1 | |
| Engine Power (prime/standby) | Max power 490kw | |
| Aspiration | Direct injection | |
| Governor/Class | Electronic | |
| Bore and stroke | 127×165 mm | |
| Start mode | DC24V electric start | |
| Cylinders Layout | In Line | |
| Displacement | 12.54 L | |
| Alternator | Alternator Brands | Stamford |
| Model | S5L1D-C4 | |
| Protection class | IP23 | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Prime Power | 500KVA(400KW) | |
| Original | China | |
| Rated voltage | 400/230 V | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | Deepsea | Model | 6020 |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | Option | √ |
| Single-bearing generator again drops | √ | √ |
| Intelligent LED display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Cooling water tank | √ | √ |
| High-efficient silencer. | √ | √ |
| Air breaker | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type: 2990*1250*1900 mm
|
|
Silent type: 4150*1420*2280 mm
|
Q1:What is the warranty policy of weichai series diesel generator set?
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)
Weichai engine and Stamford/Leroy Somer/Marathon alternator enjoy wroldwise after service offered by Weichai and Stamford/Leroy Somer/Marathon global after service network.
Quick after service and parts are available from Stone Power or distributors in your location.
Q2:If I want to visit your factory,how can I get?
Welcome to visit our factory,our factory located in Nanjing City,China,about 1 hour by car from Nanjing Airport or South Nanjing railway station.We can pick you up at Nanjing Airport or railway station.
