1300KW Weichai Diesel Generator Set 60Hz Wattak Alternator 480V 1800rpm 1575KVA DG Set
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Engine Brand: | Weichai Baudouin | Alternator Brand: | Wattak |
|---|---|---|---|
| Frequency: | 60Hz | Fuel System: | High Pressure Common Rail |
| Maximum Current: | 2135 | Cylinders Layout: | V Type,16 Cylinders |
| Compression Ratio:: | 15:1 | Bore And Stroke: | 150×185 Mm |

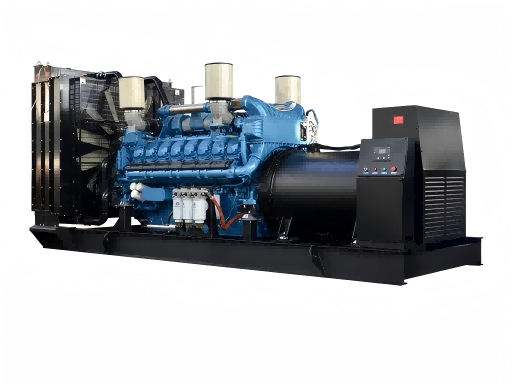

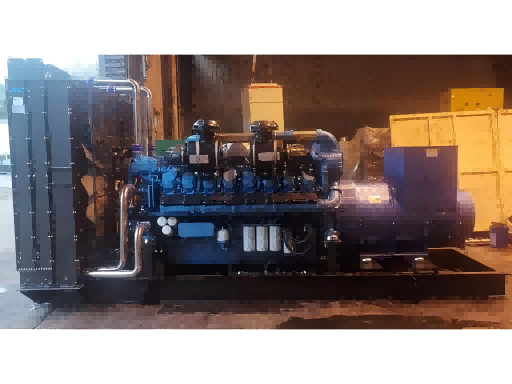

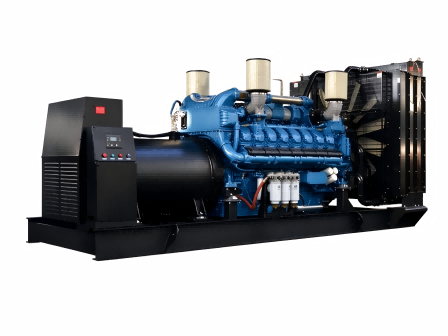

1300KW Weichai Diesel Generator Set 60Hz
480V 3 Phase with Global Warranty DG Set
1300kW Weichai diesel generator set, 3-phase, 480V, 60Hz. It adopts Baudouin engine, with global warranty service. This DG set is standalone type without synchronizing parallel panel.
| Generator set | Model No. | SW1775E6S |
| Standby power | 1775KVA/1420KW | |
| Rated power | 1575KVA/1300KW | |
| Output voltage | 480V | |
| Frequency | 60 Hz | |
| Noise level(7m) | 80 Dba (silent type) | |
| Power factor | COSΦ=0.8(lagging) | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption |
310L/h (100% loading) 233L/h (75% loading) |
|
| Maximum current(amps) | 2135 | |
| Air breaker | 2500A/3 pole | |
| Protection |
Low oil-pressure, High water temperature, Over-speed, Over-current,etc |
|
| Engine | Brand | Weichai Baudouin |
| Model | 16M33D1680E311 | |
| Cooling System | Water cooled/radiator (50 degree) | |
| Cylinder layout | V type,16 cylinders | |
| Fuel | 0# light diesel | |
| Fuel system | ECU,Electronically controlled high pressure common rail | |
| Emission standard | Non-road China III (equel to Tier 3) | |
| Compression Ratio: | 15:1 | |
|
Engine Power (Prime/standby) |
1530KW/1680KW | |
| Aspiration | Turbocharged/ Aftercooled | |
| Bore and stroke | 150×185 mm | |
| Start mode | DC24V electric start | |
| Coolant capacity | 130L | |
| Oil capacity (high/low) | 171L /114L | |
| Displacement | 52.3 L | |
| Alternator | Brand | Wattek |
| Model | WHI 7C | |
| Protection | IP23 | |
| Insulation class | H | |
| Bearing | single | |
| Winding pitch | 2/3 | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Output (Cont./standy) | 1575KVA/1775KVA | |
| Rated voltage | 480V/3 phase | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR MX321/PMG |
| Technical parameters of Control Panel: | ||||
| Brand | Deep Sea | Model | DSE6120 |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 3000L | N/A | √ |
| Intelligent LCD display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Radiator | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Circuit breaker | √ | √ |
| High-efficient muffler | √ | √ |
| Exhaust flexible pipes | √ | √ |
| Storage battery/cable/charger | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type : 6550*1950*2350 mm 12,000 kg |
|
Silent type: 12192*2438*2896mm 22,000 kg (40’H containerized soundproof canopy)
|
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty Weichai Baudouin genset of 24 months or 2,000 running hours warranty which comes firstly.
Quick after service and parts are available from Stone Power or distributors in your location.
FAQ:
Q:What is the rated power of this generator?
A:1300kW / 1575kVA diesel generator.
Q:Do you provide CE certificate?
A:Yes, we have CE certificate.
Q:What’s the warranty period?
A:The genset warranty is 24 months or 2000 running hours which comes firstly.
Q:Can we customize the control panel?
A: Smargen or Deepsea is within the optional range.
Q:How long is the lead time?
A:It is to be confirmed in different situations.
