| Standby Power: | 3300KVA/2640KW | Rated Power: | 3000KVA/2400KW |
|---|---|---|---|
| Output Voltage: | 400/230V | Starting System: | 24V DC Electric Starting Motor |
| Control System: | Marathon,Smartgen, Deepsea, | Cooling System: | Water-cooled |
| Frequency: | 50Hz/60Hz | Rated Currency(amps): | 4174 |
| Engine Speed: | 1500 Rpm | Fuel System: | Electronically Controlled High Pressure Common Rail |
| High Light: | 2400KW Weichai Diesel Generator Set,Marathon Oil Drill Engine Genset,3000KVA Weichai Diesel Generator Set |
||
| Generator set | Model No. | WPG3300B73 |
| Standby power | 3300KVA/2640KW | |
| Rated power | 3000KVA/2400KW | |
| Output voltage | 415/240V | |
| Frequency | 50 Hz | |
| Noise level(7m) | 83-86 dB (silent type) | |
| Power factor | COSΦ=0.8 | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption | 434L/h (average) | |
| Rated currency(amps) | 4174 | |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | |
| Engine | Brand | Weichai Baudouin |
| Model | 16M55D2900E310 | |
| Engine speed: | 1500 rpm | |
| Cylinders | 16 | |
| Fuel | 0# light diesel | |
| Fuel system | Electronically controlled high pressure common rail | |
| Oil Capacity (low/high) | 350/405 L | |
| Inter-Cooling | water inter-cooling | |
| Compression Ratio: | 16.5:1 | |
|
Engine Power (prime/standby) |
2646KW/2900KW | |
| Aspiration | Turbocharged/Intercooling | |
| Governor/Class | Electronic | |
| Bore and stroke | 180×215 mm | |
| Start mode | DC24V electric start | |
| Cylinders Layout | V | |
| Displacement | 87.5L | |
| Alternator | Brand | Marathon |
| Model | MXL-2400-4 | |
| Protection | IP23 | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Output (Prime/Standby) | 2500kva/2750kva | |
| Line | 12 wires | |
| Frequency | 50 Hz | |
| Rated voltage | 415/240 V | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | UK Deepsea | Model | DSE7320 |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Property | Value |
|---|---|
| Warranty | 1000 Hours Or 12 Months |
| Noise Level | ≤105dB(A) |
| Cooling System | Water-cooled |
| Rated Speed | 1500/1800rpm |
| Control System | Smartgen, Deepsea, |
| Certificate | ISO, CE |
| Engine Model | WD615, WD618, WD12, WP12, WP13, WP10, WP6, WP4, WP3 |
| Starting System | 24VYesDC Electric Starting Moto |
| Price | Low Price, More Cost-effective |
|
Open type |
7090*3000*3580 mm 25,400 kg |
|
|
|

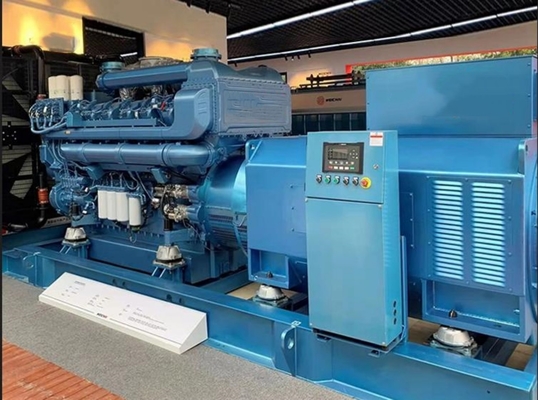

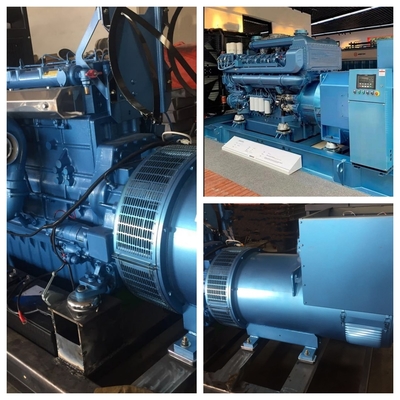

Weichai diesel generator set is a leading technology of open type generator set. It is provided by STONE POWER, a professional manufacturer of reliable power solutions. voltage 400V/230V, 50Hz/60Hz. It is equipped with different engine model guarantees superior quality, high efficiency, low noise.
Weichai Diesel Generator Set with Brand Name STONE POWER, Model Number 30KVA, Place of Origin China, Minimum Order Quantity 1, Price Negotiable, Delivery Time 30 and Control System Smartgen, Deepsea, etc., is sure to meet your needs due to its strict quality control, the best quality, a wide range of applications, Voltage 400V/230V, 50Hz/60Hz, and Starting System 24V DC Electric Starting Motor. Contact us today for more information!
Weichai Diesel Generator Set provides superior technical support and service for its products. We have a team of highly skilled and experienced engineers and technicians, ready to provide comprehensive technical support and services for all of our products. Our services include:
We are committed to providing timely and efficient service to ensure our customers get the maximum value out of their purchase. Contact us today to learn more about our technical support and services.
