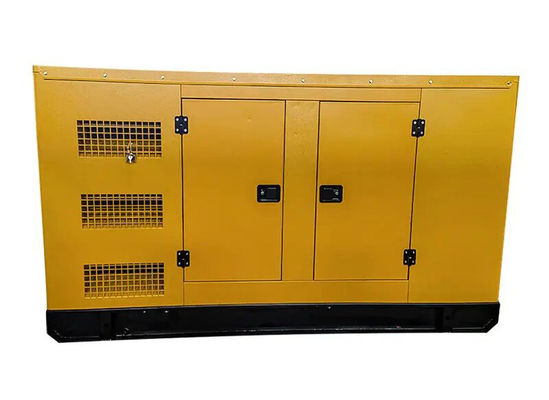

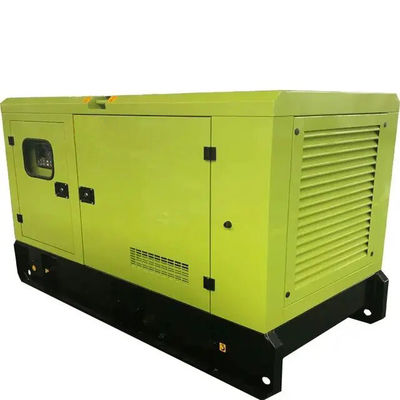

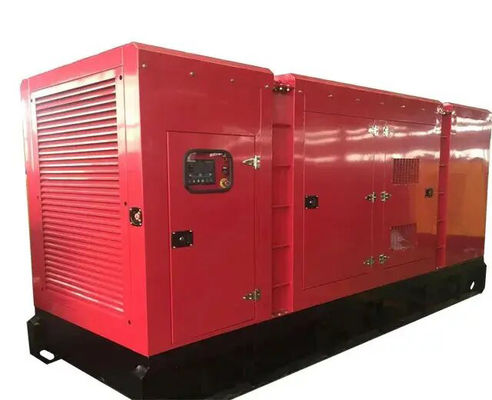

Weichai Baudouin Engine Model 6M33D633E200 Soundproof Type With Closed Water Cooling System
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Prime Power: | 625KVA/500KW | Cooling System: | Closed Water Cooling System |
|---|---|---|---|
| Fuel Tank: | 8 Hours | Starting System: | Electric Starting System |
| Protection Grade: | IP23 | Engine Model: | 6M33D633E200 |
| Warranty: | 1 Year | Stand Power: | 688KVA/550KW |
| Highlight: | Soundproof Type Weichai Diesel Generator Set,6M33D633E200 Weichai Diesel Generator Set,Water Cooling Weichai Diesel Generator Set |
||
Product Description:
Weichai Baudouin Engine Model 6M33D633E200 Soundproof Type with Closed Water Cooling System
| Generator set | Model No. | SW625E5 |
| Standby power | 688KVA/550KW | |
| Rated power | 625KVA/500KW | |
| Output voltage | 400/415 V | |
| Frequency | 50 Hz | |
| Noise level(7m) | 78 dB (silent type) | |
| Power factor | COSΦ=0.8 | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption |
132L/h (100% load) 98 L/h (75% load) |
|
| Max currency(amps) | 992 (400V) /956 (415V) | |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | |
| Engine | Brand | Weichai Baudouin |
| Model | 6M33D633E200 | |
| Rated speed (r/min.) | 1500 | |
| Cylinders layout | 6 in line | |
| Fuel | 0# light diesel | |
| Oil Capacity | 36/61 L | |
| Compression Ratio: | 15:1 | |
|
Engine Power (prime/standby) |
575KW/633KW | |
| Aspiration | Turbocharged&Intercooling | |
| Governor/Class | Electronic | |
| Bore and stroke | 150×185 mm | |
| Start mode | DC24V electric start | |
| Displacement | 19.6 L | |
| Alternator | Brand | Leroy Somer |
| Model | TAL-A473-F | |
| Rated speed (r/min.) | 1500 | |
| Protection | IP23 | |
| Insulation class | H | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Output (Cont./Standby) | 660kva/725kva | |
| Frequency | 50 Hz | |
| Rated voltage | 380-415V adjustable | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | Smartgen | Model | HGM6110N |  |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. | optional | √ |
| Single-bearing generator again drops | √ | √ |
| Digital type control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Circuit breaker cabinet | √ | √ |
| Radiator | √ | √ |
| High-efficient silencer. | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type: 3810*1600*2100 mm 4,500 kg |
|
Slient type: 4900*2200*2450 mm 7,000 kg |
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of complete genset 12 months or 2,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)Weichai Baudouin engine and Leroy somer alternator enjoy worldwise after service offered by Weichai Baudouin and Leroy somer global after service network.Weichai Baudouin engine enjoy 2 year or 2,000 running hours warranty.Quick after service and parts are available from Stone Power or distributors in your location.
FAQ:
Q1: What is the brand of this diesel generator set?
A1: The brand name of this diesel generator set is Wecai Industrial Genset.
Q2: What is the model number of this diesel generator set?
A2: The model number of this diesel generator set is SW625E5.
Q3: Where is this diesel generator set made?
A3: This diesel generator set is made in China.
Q4: What certifications does this diesel generator set have?
A4: This diesel generator set has CE, BV, ISO, and Soncap certifications.
Q5: What is the minimum order quantity for this diesel generator set?
A5: The minimum order quantity for this diesel generator set is 1 unit.
Q6: What is the price range of this diesel generator set?
A6: The price range for this diesel generator set is USD$33,000 ~USD$30,000.
Q7: What is the packaging details for this diesel generator set?
A7: The packaging details for this diesel generator set is plastic film.
Q8: What is the delivery time for this diesel generator set?
A8: The delivery time for this diesel generator set is 25 days.
Q9: What are the payment terms for this diesel generator set?
A9: The payment terms for this diesel generator set are T/T or LC.
Q10: What is the supply ability for this diesel generator set?
A10: The supply ability for this diesel generator set is 20 units per month.
