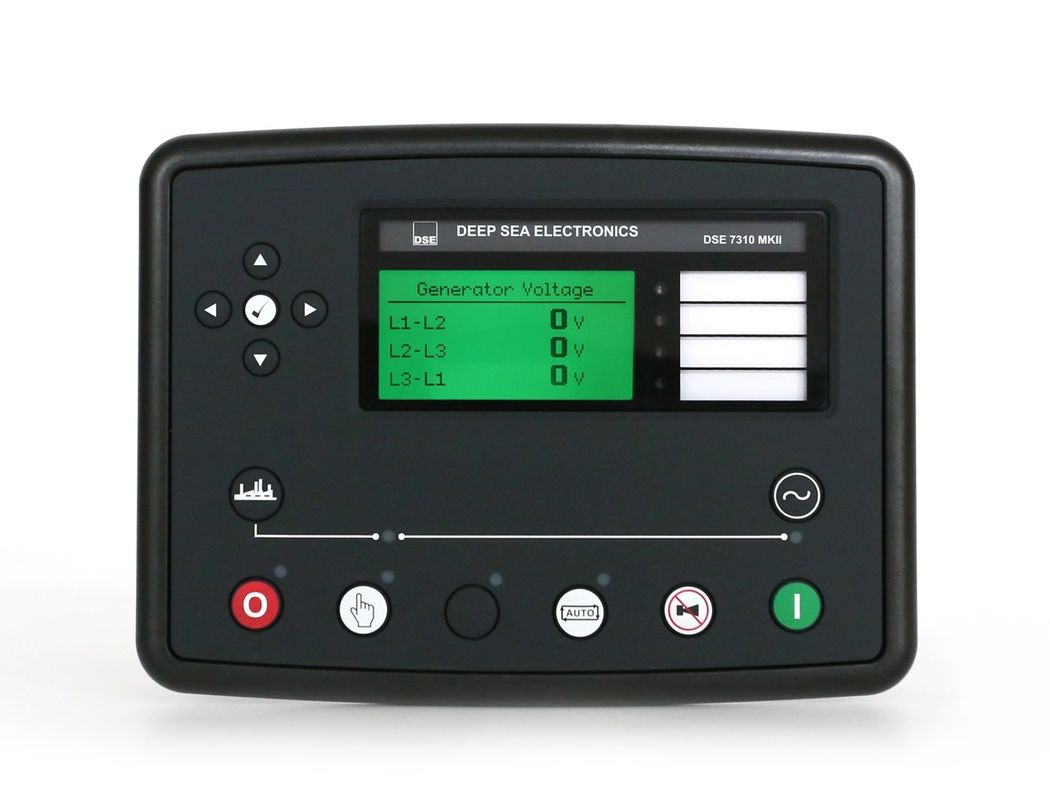

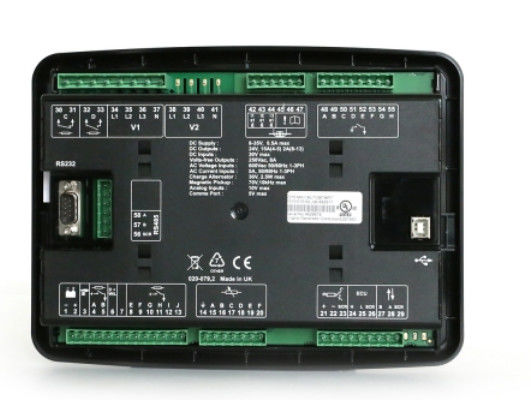

Auto Start Control Module DSE7310 MKII for Generator Spare Parts

• Can be configured as a single-set controller, multi-set controller, mains (utility) controller, or group controller
• Comes with an integral heater for enhanced performance in diverse operating conditions
• Designed to handle extensive paralleling requirements efficiently

Technical Parameters:


OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
PRODUCT VARIANTS
7310-03 - 7310 MKII Autostart Control Module


Applications:


-Configurable power-up mode.
-Choose to power up the module in stop / manual / auto mode.
-MPU fail delay.
-If an MPU failure is detected the alarm can be delayed to allow for transient in the signal.
-Enhanced graphical user interface.
-Major design changes added to V7 to make the GUI easier to understand.
-Drag and drop advanced PLC editor.
-Powerful PLC editor functionality as standard.
-MSC ID within PLC GenComm override.
-PLC logic can be created to change the MSC ID to avoid having to use DSE -Configuration Suite on-site.
-CAN support for the DSEA108 AVR.
-Full communication with the DSEA108 over CAN. The DSEA108 information is displayed -on the front display of the control module.
-Supports 7 languages.
-English and 6 alternative languages can be stored in the control module.
-Crank disconnect on generator voltage.
-Provides the ability to crank disconnect on generator voltage.
-Oil pressure disconnect delay.
-Delays the crank disconnect on oil pressure to compensate for cold oil.
-DSE25XX MKII supported over DSENet®.
-Increases the number of supported DSE25XX MKII to two by allowing a single DSE25XX -MKII to communicate over DSENet®.
-Charge alternator disable functionality.
-Charge alternator support can be disabled. This removes all related information from the front panel editor and SCADA.
-3 digital input functions added to allow ECU specific operations.
-Provides additional flexibility by allowing users to turn on additional engine functionality on supported electronic engines.
-Supports escape mode.
-Allows an engine to be run when it has received a shutdown command related to efficiency limits.
-Configurable icon screens.
-Icon layout on module screens can be configured to suit individual applications.
-4-line back-lit LCD text display
-Provides comprehensive and clear indication of operation and parameters.
-Five key menu navigation
-Provides convenient and flexible navigation of parameters.
-Support for up to three remote display units
-Provides the option to mimic the main control module up to 1.2 km.
-Configurable inputs (8)
-Provides multiple installation options.
-Configurable analogue / digital inputs (6)
-Provides flexibility for multiple installation options.
-Configurable outputs (8)
-Provides multiple installation options.
-Tier 4 CAN engine support.
-Ensures the control module can be used with the latest in modern electronic engine technology.
-Manual fuel pump control.
-Allows the fuel tank to be filled to provide reassurance of system operation.
-Power monitoring (kW h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection.
-Provides clear accurate power measurement information.
-Data logging facility
-Provides current and historical status information.
-Customisable power up text and images
-Company logo can be uploaded to the start up splash screen.
-Support for 0-10 V & 4-20mA oil pressure senders.
-Provides support for a wide range of sensors and parameters.
-Can be configured for use as a remote display module
-Single product can be used for dual functionality.
