●Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1
●Single or double bearings are available, options for all kinds of adaptors and coupling disc
●12-end reconnectable winding terminals to get different voltages
●Standard “H” insulation class
●Convenient installation and maintenance for rotated diodes and adaptor connected bolts
●Standard sealed maintenance-free bearings
Options
-
●Air filter
●Droop CT
●Winding RTD
●IP23 or IP22 Protection
●Anti-condensation heater
●Winding protection thermistor and relay
-
 |
|
Sales & Support
Request A Quote - Email
Select Language
|
|
|
I'm Online Chat Now
Certification

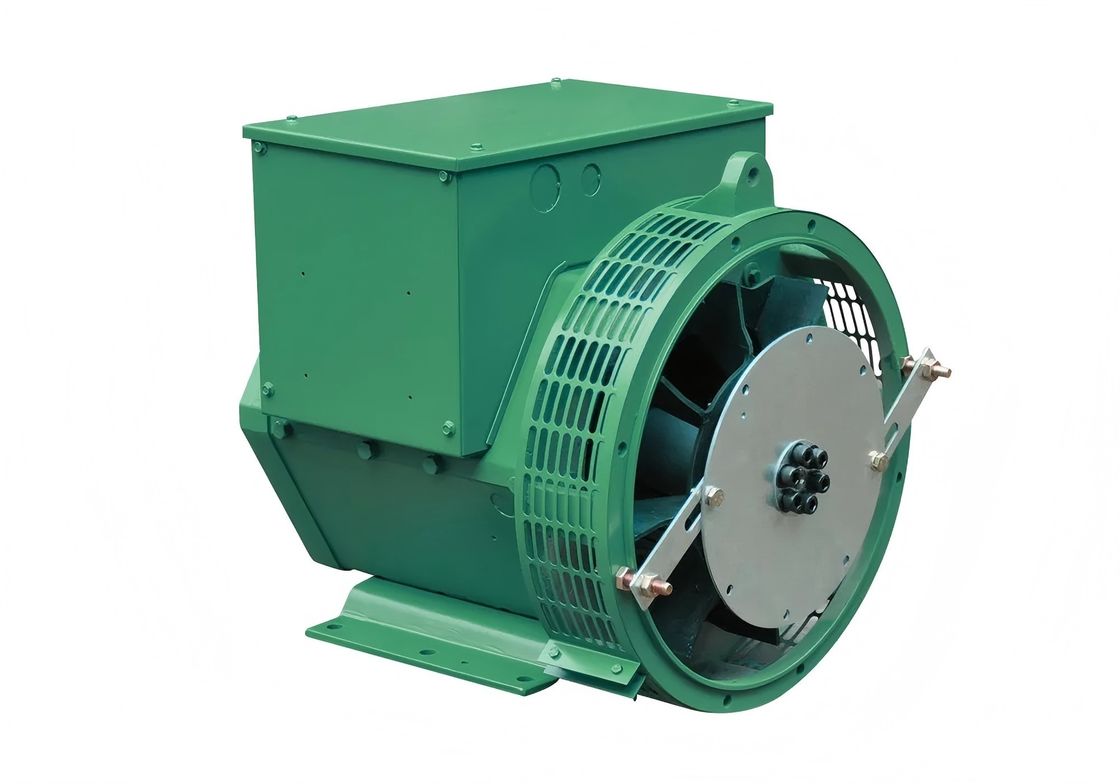

8.1-16KVA 4 Poles Brushless Alternator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Diesel Generator | Durability: | Highly Durable And Long-lasting |
|---|---|---|---|
| Warranty: | 1 Year Limited Warranty | Weight: | Varies Depending On The Part |
| Color: | Green/Silver | Type: | WHI164 |
| Compatibility: | Compatible With Multiple Diesel Generator Brands |
WHI164 Series---8.1-16KVA 4 Poles Brushless Alternator
Quality 8.1-16KVA 4 Poles Brushless suppliers & exporter - all products made in China.
ALTERNATOR SPECIFICATION
| VOLTAGE | 4 POLES | 4 POLES | |||||
| 50Hz 1500rpm | 60Hz 1800rpm | ||||||
| STAR-SERIES | 380 | 400 | 415 | 416 | 440 | 480 | |
| STAR-PARALLEL | 190 | 200 | 208 | 208 | 220 | 240 | |
| TRIANGLE-SERIES | 220 | 230 | 240 | 240 | 254 | 277 | |
| WHI164A | RATED CAPACITY (kVA) | 8.1 | 8.1 | 8.1 | 9.6 | 10.2 | 10.2 |
| RATED POWER (kW) | 6.5 | 6.5 | 6.5 | 7.7 | 8 | 8 | |
| EFFICIENCY (％) | 75.6 | 76.2 | 76.6 | 76.3 | 76.9 | 77.4 | |
| WHI164B | RATED CAPACITY (kVA) | 11 | 11 | 11 | 13.8 | 13.8 | 13.8 |
| RATED POWER (kW) | 8.8 | 8.8 | 8.8 | 11 | 11 | 11 | |
| EFFICIENCY (％) | 78.8 | 79.4 | 79.8 | 79.4 | 80.0 | 80.0 | |
| WHI164C | RATED CAPACITY (kVA) | 13.5 | 13.5 | 13.5 | 17 | 17 | 17 |
| RATED POWER (kW) | 10.8 | 10.8 | 10.8 | 13.5 | 13.5 | 13.5 | |
| EFFICIENCY (％) | 80.0 | 80.7 | 81.0 | 80.7 | 81.3 | 81.7 | |
| WHI164D | RATED CAPACITY (kVA) | 16 | 16 | 16 | 20 | 20 | 20 |
| RATED POWER (kW) | 12.8 | 12.8 | 12.8 | 16 | 16 | 16 | |
| EFFICIENCY (％) | 81.0 | 81.6 | 81.9 | 81.7 | 82.2 | 82.7 | |
-
The alternator has been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000 meters above sea level. The power factor is 0.8, and the level of raising temperature is H class (125℃)
Packing and Shipping:
Product Packaging:
Our Diesel Generator Spare Parts are carefully packaged to ensure they arrive in perfect condition. Each part is wrapped in protective material and placed in a sturdy box with ample cushioning to prevent any damage during transit.
Shipping:
We offer fast and reliable shipping for our Diesel Generator Spare Parts. Orders are processed promptly and shipped out within 1-2 business days. We partner with reputable courier services to ensure timely delivery to our customers. Tracking information will be provided so you can monitor the progress of your shipment.
