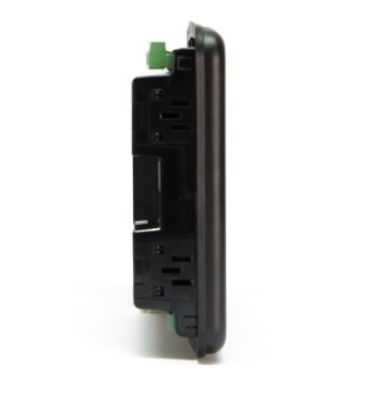

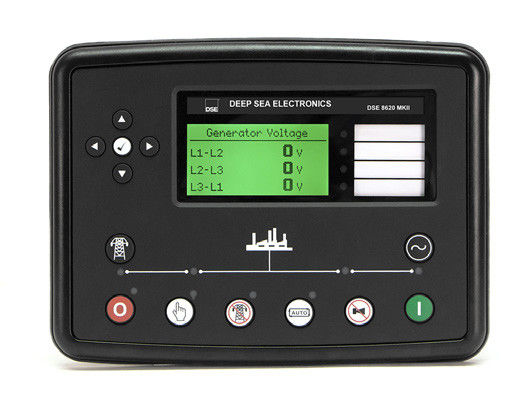

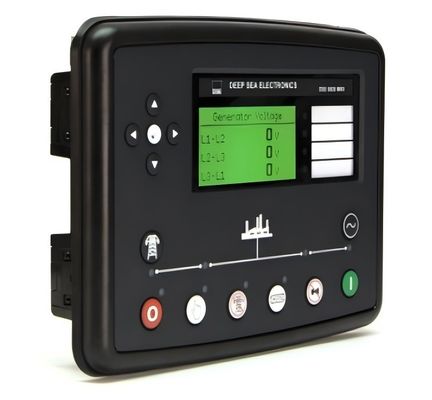

Synchronising Auto Mains Utility Failure Load Share Control Module DSE8620 MKII

The DSE8620 MKII represents the latest in complex load sharing & synchronising control technology. Designed to synchronise a single genset with a mains (utility) supply, the DSE8620 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry.

The controller also has the option to be configured for use as a DSE8610 MKII Auto Start Load Sharing & Synchronising Control Module. When converted for use as a DSE8610 MKII the unit provides generator to generator load share functionality.

Technical Parameters:

OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")

MAXIMUM PANEL THICKNESS
8.0 mm (0.3")

WEIGHT
0.88kg

PRODUCT VARIANTS
8620-02 - 8620 MKII Synchronising Auto Mains (Utility) Failure Load Sharing Control Module

Applications:

-mains failure detection, mains power (kW, kVAr, kVA & pf) monitoring, mains decoupling protection, mains overpower protection

-Peak shaving and peak shaving functions

-Customizable input/output (11/8)

-Built-in speed regulation and voltage regulation control functions

-constant power output function

-Positive and Negative Reactive Power Output Control

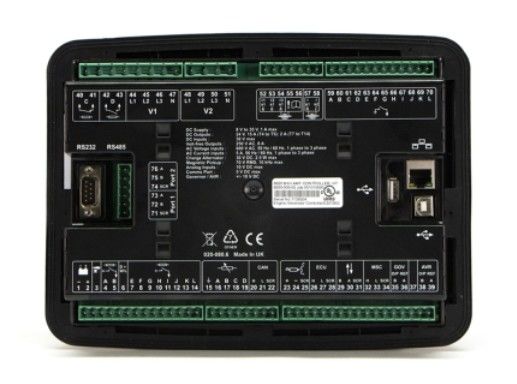

-Multiple remote communication (RS232, RS485 x2, Ethernet) ports, all ports can be used at the same time

- 250 event records for easy viewing of historical failures

-Built-in powerful PLC functions

-Hierarchical load rejection and virtual load output

-power monitoring (kWh, kVAr, kvAh, kVArh), reverse power protection, overload protection

-Data record (connected to a U disk) to record the current and historical status information.

-Free DSE Software

-EFI engine supporting national 4 emission standards

added features

-Frequency Change Rate and Vector Angle Judgment

-Generator Load Demand Control

-Automatically balance engine running time

-Bus failure detection

-Supports the Modbus RTU/TCP protocol.

-Supports multiple languages

-Sound alarm

-Flexible Sensor Input

-Customizable timer and alarm

-You can set 3 maintenance tips.

-Multiple scheduled boot options

-Supports different types of EFI engines

-Fuel Monitoring

-Built-in real-time clock

-Control the start and stop of the unit by sending messages via mobile phone

- Modem diagnosis
