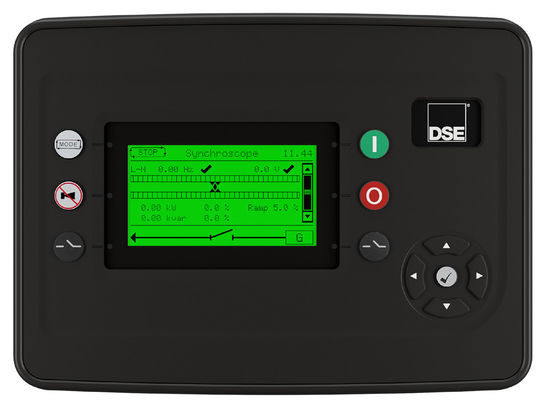

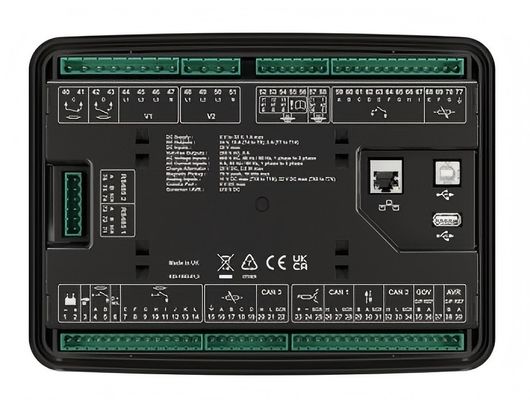

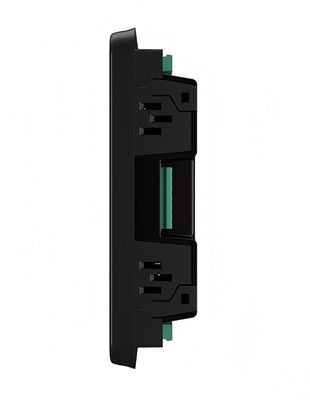

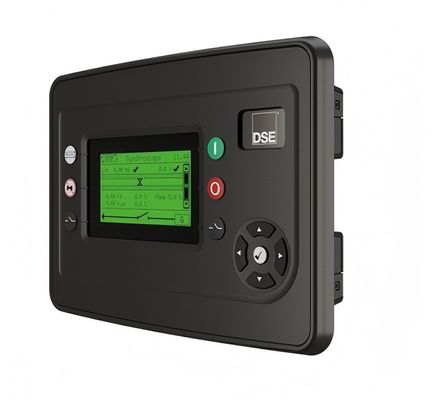

Effortless Installation and Functionality Deepsea G8600 Parallel Genset Controller with Integral Heater

Product Description:

The G8600 is a parallel genset controller with an integrated heater specifically designed for intricate paralleling applications. This advanced controller can be set up to enable paralleling for up to 4,032 generators at a single site, offering a plethora of sophisticated features suitable for various application scenarios. The module is versatile and can be configured for use as a single-set controller, multi-set controller, mains (utility) controller, or group controller.

Technical Parameters:

Overall Dimensions:

Width: 248 mm / 9.77", Height: 182.6 mm / 7.19", Depth: 45.2 mm / 1.78"

Panel Cut-Out Dimensions:

Width: 220 mm / 8.66", Height: 160 mm / 6.3"

Maximum Panel Thickness:

8 mm / 0.31"

Applications:

Multi-channel mains control function (multiple 8600 required)

-mains failure detection, mains power (kW, kVAr, kVA & pf) monitoring, mains decoupling protection, mains overpower protection

-Peak shaving and peak shaving functions

-control all units to start or some units to start

-Customizable input/output (12/8)

-Built-in powerful PLC functions

-power monitoring (kWh, kVAr, kvAh, kVArh), reverse power protection, overload protection

-Data record (connected to a U disk) to record the current and historical status information.

-Free DSE Software

-EFI engine supporting national 4 emission standards

added features

-Frequency Change Rate and Vector Angle Judgment

-Generator Load Demand Control

-Automatically balance engine running time

-Bus failure detection

-Supports the Modbus RTU/TCP protocol.

-Supports multiple languages

-Sound alarm

-Flexible Sensor Input

-Customizable timer and alarm

-You can set 3 maintenance tips.

-Multiple scheduled boot options

-Supports different types of EFI engines

-Fuel Monitoring

-Built-in real-time clock

-Control the start and stop of the unit by sending messages via mobile phone

- Modem diagnosis

Support and Services:

Our Product Technical Support and Services for Diesel Generator Spare Parts include:

- Assistance with identifying the correct spare parts for your specific generator model

- Guidance on installation and maintenance procedures

- Troubleshooting support for any issues related to the spare parts

- Warranty information and support for defective parts

- Recommendations for optimizing the performance and lifespan of your generator through proper spare parts utilization
