● Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1
● Single or double bearings are available, options for all kinds of adaptors and coupling disc
● 12-end reconnectable winding terminals to get different voltages
● Standard “H” insulation class
● Convenient installation and maintenance for rotated diodes and adaptor connected bolts
● Standard sealed maintenance-free bearings
 |
|
Sales & Support
Request A Quote - Email
Select Language
|
|
|
I'm Online Chat Now
Certification

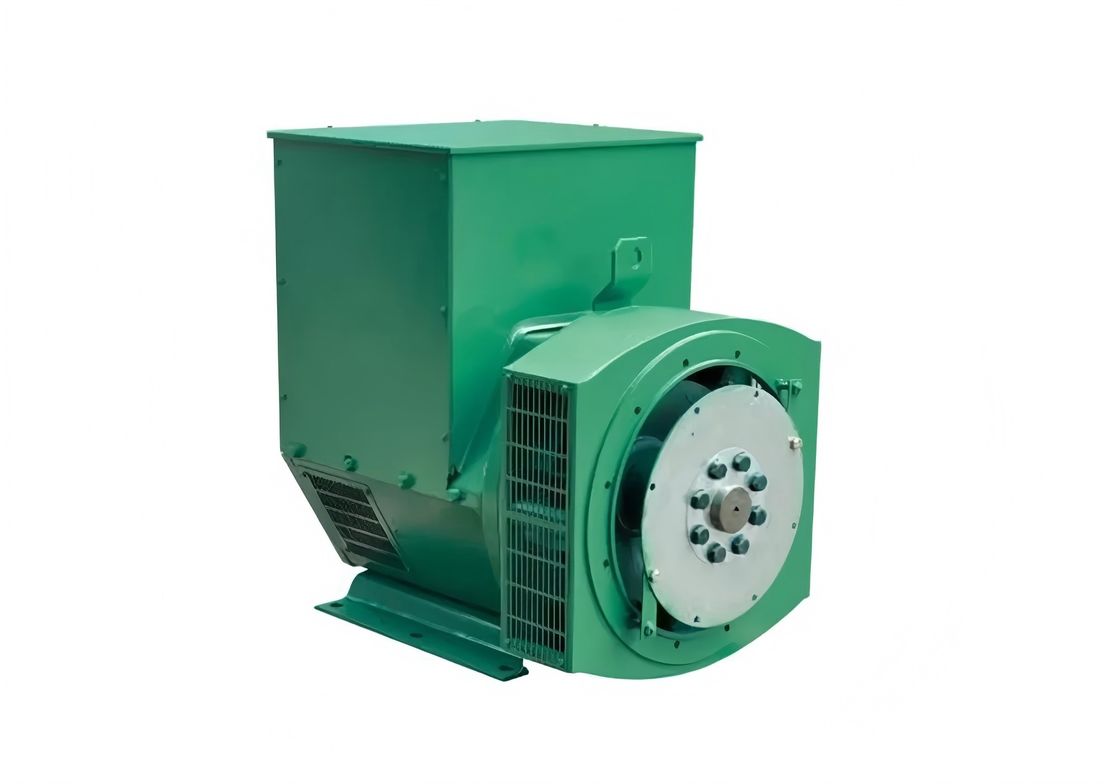

42.5-88KVA 4 Poles Brushless Alternator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Diesel Generator | Durability: | Highly Durable And Long-lasting |
|---|---|---|---|
| Warranty: | 1 Year Limited Warranty | Weight: | Varies Depending On The Part |
| Color: | Green/Silver | Type: | WHI224 |
| Compatibility: | Compatible With Multiple Diesel Generator Brands |
WHI224 Series---42.5-88KVA 4 Poles Brushless Alternator
Quality 42.5-88KVA 4 Poles Brushless suppliers & exporter - all products made in China.
-
Voltage:120~690V
-
Rated Capacity:42.5~88KVA
-
Rated Power:34~70KW
-
Options
-
● Air filter
● Droop CT
● PMG excitation system
● Winding RTD
● IP23 or IP22 Protection
● Anti-condensation heater
● Winding protection thermistor and relay
● The auxiliary winding excitation system
-
ALTERNATOR SPECIFICATION
| VOLTAGE | 4 POLES | 4 POLES | |||||
| 50Hz 1500rpm | 60Hz 1800rpm | ||||||
| STAR-SERIES | 380 | 400 | 415 | 416 | 440 | 480 | |
| STAR-PARALLEL | 190 | 200 | 208 | 208 | 220 | 240 | |
| TRIANGLE-SERIES | 220 | 230 | 240 | 240 | 254 | 277 | |
| WHI224C | RATED CAPACITY (kVA) | 42.5 | 42.5 | 42.5 | 50 | 52.5 | 55 |
| RATED POWER (kW) | 34 | 34 | 34 | 40 | 42 | 44 | |
| EFFICIENCY (％) | 86.5 | 87.1 | 87.4 | 87.2 | 87.5 | 87.9 | |
| WHI224D | RATED CAPACITY (kVA) | 50 | 50 | 50 | 62.5 | 62.5 | 62.5 |
| RATED POWER (kW) | 40 | 40 | 40 | 48 | 50 | 52 | |
| EFFICIENCY (％) | 87.8 | 88.2 | 88.5 | 88.2 | 88.6 | 88.8 | |
| WHI224E | RATED CAPACITY (kVA) | 62.5 | 62.5 | 62.5 | 78 | 78 | 78 |
| RATED POWER (kW) | 50.0 | 50.0 | 50.0 | 62.5 | 62.5 | 62.5 | |
| EFFICIENCY (％) | 88.1 | 88.1 | 88.9 | 88.9 | 89.2 | 89.4 | |
| WHI224F | RATED CAPACITY (kVA) | 75.0 | 75.0 | 75.0 | 83.8 | 87.5 | 93.8 |
| RATED POWER (kW) | 60.0 | 60.0 | 60.0 | 67 | 70 | 75 | |
| EFFICIENCY (％) | 89.6 | 89.9 | 90.1 | 90.0 | 90.3 | 90.6 | |
| WHI224G | RATED CAPACITY (kVA) | 87.5 | 87.5 | 87.5 | 109 | 109 | 109 |
| RATED POWER (kW) | 70 | 70 | 70 | 87.5 | 87.5 | 87.5 | |
| EFFICIENCY (％) | 89.9 | 90.2 | 90.4 | 90.6 | 90.8 | 91.0 | |
-
The alternator has been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000 meters above sea level. The power factor is 0.8, and the level of raising temperature is H class (125℃)
Packing and Shipping:
Product Packaging:
Our Diesel Generator Spare Parts are carefully packaged to ensure they arrive in perfect condition. Each part is wrapped in protective material and placed in a sturdy box with ample cushioning to prevent any damage during transit.
Shipping:
We offer fast and reliable shipping for our Diesel Generator Spare Parts. Orders are processed promptly and shipped out within 1-2 business days. We partner with reputable courier services to ensure timely delivery to our customers. Tracking information will be provided so you can monitor the progress of your shipment.
