● Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1
● Single or double bearings are available, options for all kinds of adaptors and coupling disc
● 12-end reconnectable winding terminals to get different voltages
● Standard “H” insulation class
● Convenient installation and maintenance for rotated diodes and adaptor connected bolts
● Standard sealed maintenance-free bearings
 |
|
Sales & Support
Request A Quote - Email
Select Language
|
|
|
I'm Online Chat Now
Certification

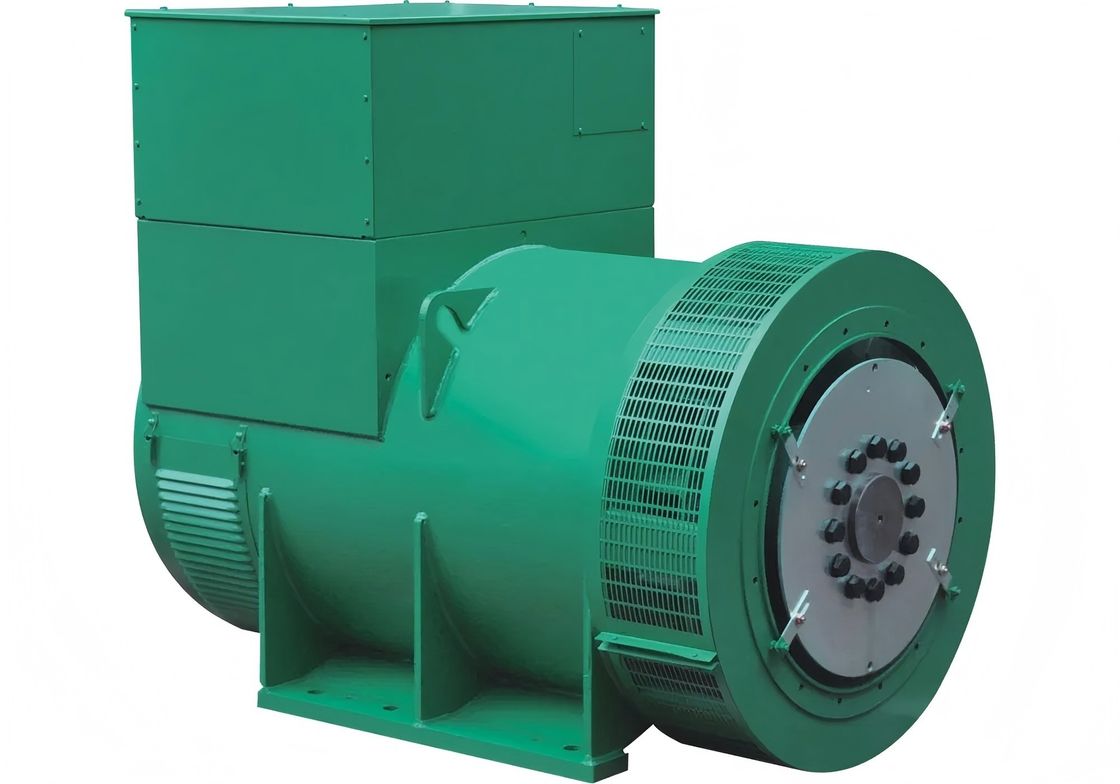

1400-2200KVA 4 Poles Brushless Alternator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Diesel Generator | Durability: | Highly Durable And Long-lasting |
|---|---|---|---|
| Warranty: | 1 Year Limited Warranty | Weight: | Varies Depending On The Part |
| Color: | Green/Silver | Type: | WHI7 |
| Compatibility: | Compatible With Multiple Diesel Generator Brands |
WHI7 Series---1400-2200KVA 4 Poles Brushless Alternator
As the best China 1400-2200KVA 4 Poles Brushless supplier,MING JIE provides quality 1400-2200KVA 4 Poles Brushless to global clients
-
Options
-
● Air filter
● Droop CT
● PMG excitation system
● Winding RTD and bearing RTD
● IP23 or IP22 Protection
● Anti-condensation heater
● Winding protection thermistor and relay
● Double bearing transition joint
-
-
-
ALTERNATOR SPECIFICATION
VOLTAGE 4 POLES 4 POLES 50Hz 1500rpm 60Hz 1800rpm STAR-SERIES 380 400 415 416 440 480 STAR-PARALLEL 190 200 208 208 220 240 TRIANGLE-SERIES 220 230 240 240 254 277 WHI 7B RATED CAPACITY (kVA) 1400 1460 1500 1690 1760 1810 RATED POWER (kW) 1120 1168 1200 1352 1408 1448 EFFICIENCY (％) 95.3 95.2 95.1 95.5 95.4 95.3 WHI 7C RATED CAPACITY (kVA) 1550 1615 1660 1890 1970 2025 RATED POWER (kW) 1240 1292 1328 1512 1576 1620 EFFICIENCY (％) 95.7 95.6 95.5 95.9 95.8 95.6 WHI 7D RATED CAPACITY (kVA) 1650 1720 1770 2015 2100 2160 RATED POWER (kW) 1320 1376 1416 1612 1680 1728 EFFICIENCY (％) 96.3 96.2 96.0 96.3 96.2 96.1 WHI 7E RATED CAPACITY (kVA) 1900 1980 2035 2300 2395 2465 RATED POWER (kW) 1520 1584 1628 1840 1916 1972 EFFICIENCY (％) 96.5 96.1 96.1 96.3 96.3 96.2 WHI 7F RATED CAPACITY (kVA) 2080 2170 2250 2600 2705 2785 RATED POWER (kW) 1664 1736 1800 2080 2164 2228 EFFICIENCY (％) 96.4 96.3 96.2 96.5 96.4 96.3 WHI 7G RATED CAPACITY (kVA) 2200 2295 2360 2750 2860 2945 RATED POWER (kW) 1760 1836 1888 2200 2288 2356 EFFICIENCY (％) 96.0 95.9 95.9 96.1 96.0 95.9 -
The alternator has been designed for use in a maximum ambient temperature of 40℃ and altitude less
-
than 1000 meters above sea level. The power factor is 0.8, and the level of raising temperature is H
-
class (125℃)
-
Packing and Shipping:
-
Product Packaging:
Our Diesel Generator Spare Parts are carefully packaged to ensure they arrive in perfect condition. -
Each part is wrapped in protective material and placed in a sturdy box with ample cushioning to prevent
-
any damage during transit.
Shipping:
We offer fast and reliable shipping for our Diesel Generator Spare Parts. Orders are processed promptly -
and shipped out within 1-2 business days. We partner with reputable courier services to ensure timely
-
delivery to our customers. Tracking information will be provided so you can monitor the progress of your
-
shipment.
-
-
