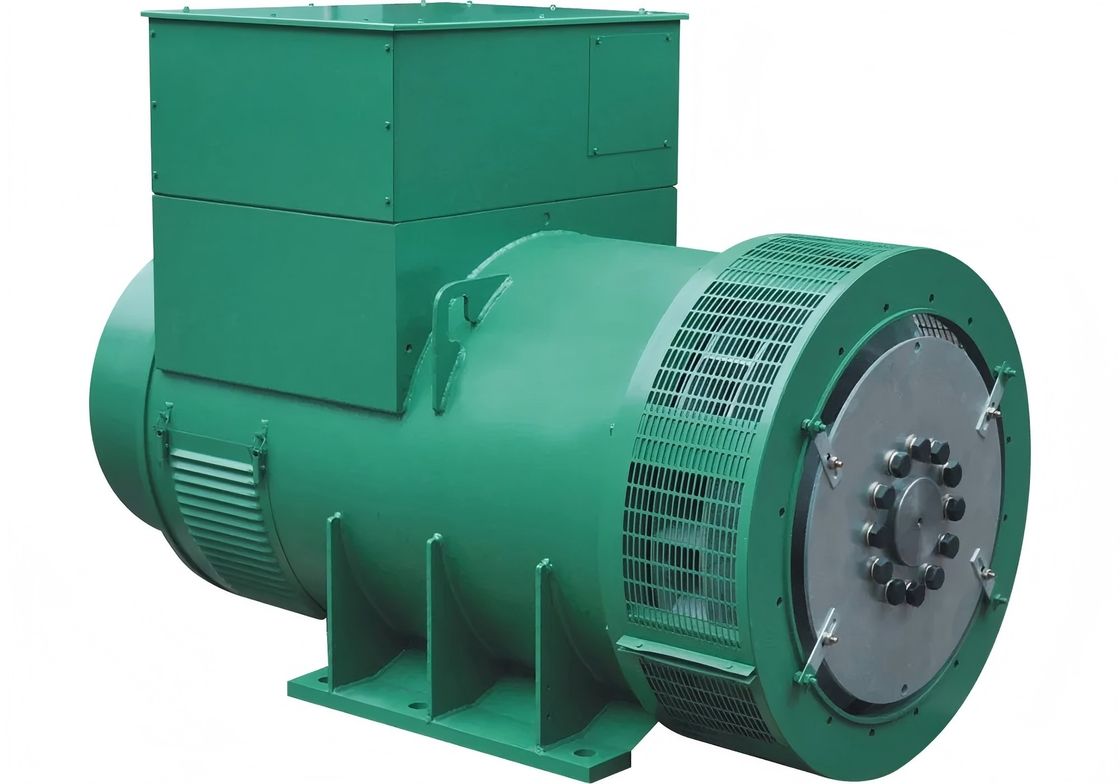

750-1250KVA 4 Poles Brushless Alternator

WHI6 Series---750-1250KVA 4 Poles Brushless Alternator

Quality 750-1250KVA 4 Poles Brushless suppliers & exporter - all products made in China.

• Voltage:120~690V

• Rated Capacity:750~1250KVA

• Rated Power:600~1000KW

• ●Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1

• ●Single or double bearings are available, options for all kinds of adaptors and coupling disc

• ●12-end reconnectable winding terminals to get different voltages

• ●Standard “H” insulation class

• ●Convenient installation and maintenance for rotated diodes and adaptor connected bolts

• ●Standard sealed maintenance-free bearings

• • • Options

      • ●Air filter
        ●Droop CT
        ●PMG excitation system
        ●Winding RTD and bearing RTD
        ●IP23 or IP22 Protection
        ●Anti-condensation heater
        ●Winding protection thermistor and relay
        ●Double bearing transition joint

    •

    • ALTERNATOR SPECIFICATION

    VOLTAGE		4 POLES			4 POLES
    		50Hz 1500rpm			60Hz 1800rpm
    STAR-SERIES		380	400	415	416	440	480
    STAR-PARALLEL		190	200	208	208	220	240
    TRIANGLE-SERIES		220	230	240	240	254	277
    WHI 6C	RATED CAPACITY (kVA)	800	810	800	925	963	1000
    	RATED POWER (kW)	640	640	640	740	770	800
    	EFFICIENCY (％)	94.1	94.4	94.5	94.3	94.4	94.6
    WHI 6D	RATED CAPACITY (kVA)	912.5	944	912.5	1063	1075	1125
    	RATED POWER (kW)	730	755	730	850	860	900
    	EFFICIENCY (％)	94.8	95.0	95.1	94.9	95.1	95.2
    WHI 6E	RATED CAPACITY (kVA)	1025	1063	1025	1225	1275	1325
    	RATED POWER (kW)	820	850	850	980	1020	1060
    	EFFICIENCY (％)	95.1	95.3	95.5	95.1	95.2	95.3
    WHI 6F	RATED CAPACITY (kVA)	1138	1175	1138	1250	1313	1375
    	RATED POWER (kW)	910	940	910	1000	1050	1100
    	EFFICIENCY (％)	95.1	95.2	95.5	95.1	95.2	95.5
    WHI 6G	RATED CAPACITY (kVA)	1260	1315	1350	1525	1585	1630
    	RATED POWER (kW)	1008	1052	1080	1220	1268	1304
    	EFFICIENCY (％)	94.8	94.6	94.5	95.0	94.9	94.8

    • The alternator has been designed for use in a maximum ambient temperature of 40℃ and altitude less

    • than 1000 meters above sea level. The power factor is 0.8, and the level of raising temperature is H

    • class (125℃)
