●Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1
●Single or double bearings are available, options for all kinds of adaptors and coupling disc
●12-end reconnectable winding terminals to get different voltages
●Standard “H” insulation class
●Convenient installation and maintenance for rotated diodes and adaptor connected bolts
● Standard sealed maintenance-free bearings
Options
-
● Air filter
● Droop CT
● PMG excitation system
● Winding RTD
● IP23 or IP22 Protection
● Anti-condensation heater
● Winding protection thermistor and relay
● The auxiliary winding excitation system
-
 |
|
Sales & Support
Request A Quote - Email
Select Language
|
|
|
I'm Online Chat Now
Certification

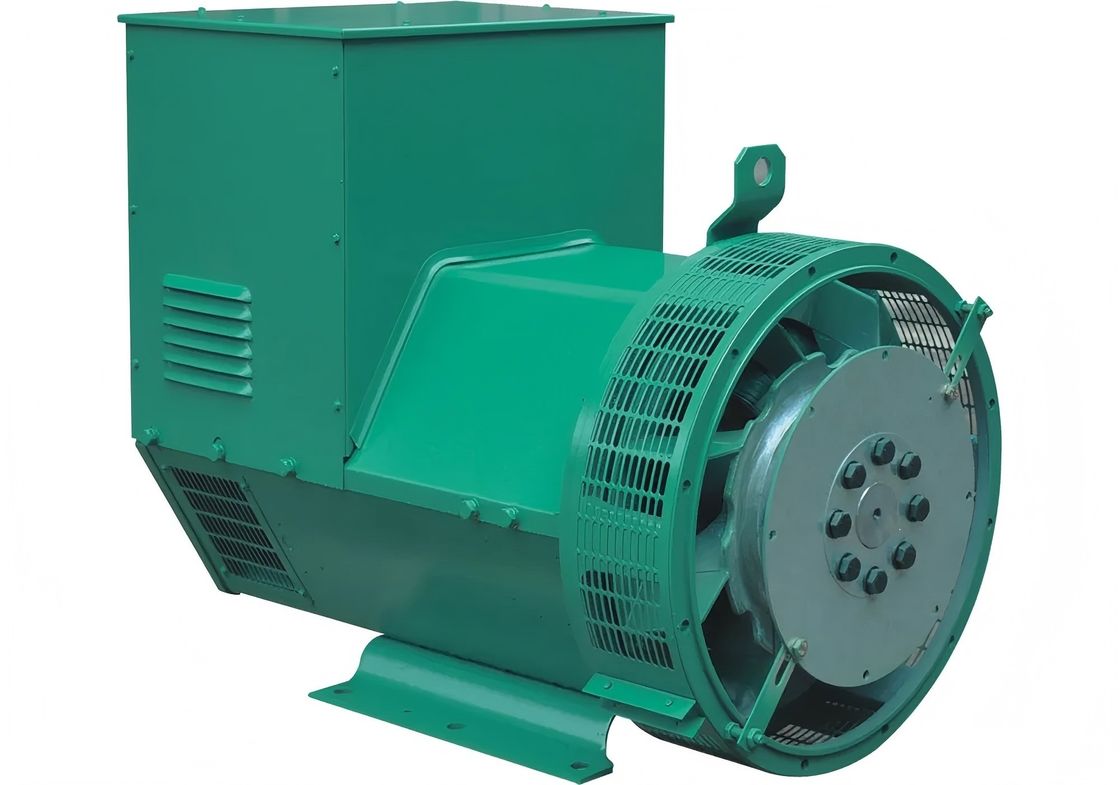

100-250KVA 4 Poles Brushless Alternator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Diesel Generator | Durability: | Highly Durable And Long-lasting |
|---|---|---|---|
| Warranty: | 1 Year Limited Warranty | Weight: | Varies Depending On The Part |
| Color: | Green/Silver | Type: | WHI274 |
| Compatibility: | Compatible With Multiple Diesel Generator Brands |
WHI274 Series---100-250KVA 4 Poles Brushless Alternator
As the best China 100-250KVA 4 Poles Brushless supplier,Stone Power provides quality 100-250KVA 4 Poles Brushless to global clients
-
Voltage:120~690V
-
Rated Capacity:100~250KVA
-
Rated Power:80~200KW
-
ALTERNATOR SPECIFICATION
| VOLTAGE | 4 POLES | 4 POLES | |||||
| 50Hz 1500rpm | 60Hz 1800rpm | ||||||
| STAR-SERIES | 380 | 400 | 415 | 416 | 440 | 480 | |
| STAR-PARALLEL | 190 | 200 | 208 | 208 | 220 | 240 | |
| TRIANGLE-SERIES | 220 | 230 | 240 | 240 | 254 | 277 | |
| WHI274C | RATED CAPACITY (kVA) | 94.0 | 94.0 | 94.0 | 106 | 106 | 106 |
| RATED POWER (kW) | 80.0 | 80.0 | 80.0 | 90 | 90 | 90 | |
| EFFICIENCY (％) | 89.9 | 90.0 | 90.0 | 90.2 | 90.5 | 90.6 | |
| WHI274D | RATED CAPACITY (kVA) | 113 | 113 | 113 | 138 | 138 | 138 |
| RATED POWER (kW) | 90 | 90 | 90 | 110 | 110 | 110 | |
| EFFICIENCY (％) | 90.0 | 90.3 | 90.3 | 90.3 | 90.5 | 90.9 | |
| WHI274E | RATED CAPACITY (kVA) | 125 | 125 | 125 | 150.0 | 155.0 | 155.0 |
| RATED POWER (kW) | 100.0 | 100.0 | 100.0 | 120 | 120 | 120 | |
| EFFICIENCY (％) | 90.3 | 90.8 | 91.0 | 90.4 | 90.7 | 91.1 | |
| WHI274F | RATED CAPACITY (kVA) | 150 | 150 | 150 | 175 | 175 | 175 |
| RATED POWER (kW) | 120 | 120 | 120 | 140 | 140 | 140 | |
| EFFICIENCY (％) | 91.9 | 92.2 | 92.2 | 92.3 | 92.4 | 92.5 | |
| WHI274G | RATED CAPACITY (kVA) | 188 | 188 | 188 | 225 | 225 | 225 |
| RATED POWER (kW) | 150 | 150 | 150 | 180 | 180 | 180 | |
| EFFICIENCY (％) | 92.2 | 92.2 | 92.3 | 92.4 | 92.4 | 92.5 | |
| WHI274H | RATED CAPACITY (kVA) | 200 | 200 | 200 | 238 | 238 | 238 |
| RATED POWER (kW) | 160 | 160 | 160 | 190 | 190 | 190 | |
| EFFICIENCY (％) | 92.2 | 92.2 | 92.3 | 92.4 | 92.4 | 92.5 | |
| WHI274J | RATED CAPACITY (kVA) | 230 | 230 | 230 | 269 | 281 | 300 |
| RATED POWER (kW) | 184 | 184 | 184 | 215.2 | WHI224.8 | 240 | |
| EFFICIENCY (％) | 92.4 | 92.4 | 92.6 | 92.8 | 92.8 | 92.8 | |
| WHI274K | RATED CAPACITY (kVA) | 250 | 250 | 250 | 291 | 299 | 312.5 |
| RATED POWER (kW) | 200 | 200 | 200 | 232.8 | 239.2 | 250 | |
| EFFICIENCY (％) | 92.5 | 92.8 | 92.8 | 92.6 | 92.7 | 92.9 | |
Packing and Shipping:
Product Packaging:
Our Diesel Generator Spare Parts are carefully packaged to ensure they arrive in perfect condition. Each part is wrapped in protective material and placed in a sturdy box with ample cushioning to prevent any damage during transit.
Shipping:
We offer fast and reliable shipping for our Diesel Generator Spare Parts. Orders are processed promptly and shipped out within 1-2 business days. We partner with reputable courier services to ensure timely delivery to our customers. Tracking information will be provided so you can monitor the progress of your shipment.
