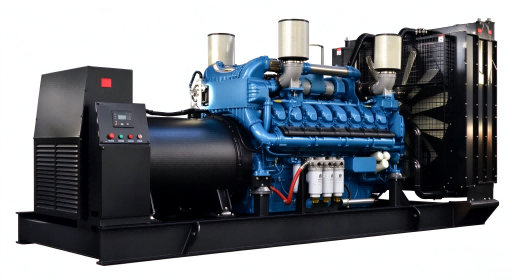

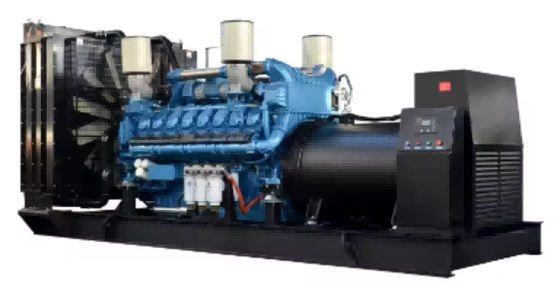

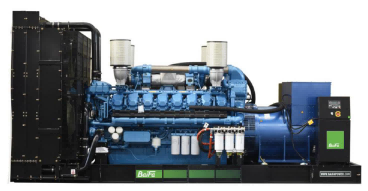

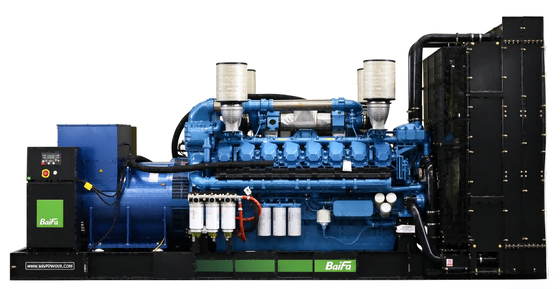

2000KW Weichai Diesel Generator Set 440V 60Hz 3 phase with Leroy Somer alternator

2000KW Weichai Diesel Generator Set 440V 60Hz 3 phase with Leroy Somer alternator

This SW2500E6 diesel generator set is powered by the original Weichai 20M33D2460E311 engine, a 20-cylinder V-type heavy-duty unit with turbocharged and after-cooled aspiration and an electronically controlled high-pressure common-rail fuel system.

With a displacement of 65.4L and an engine rating of 2200KW prime / 2460KW standby, the set delivers a stable 2000KW prime and 2200KW standby output at 440V / 60Hz / 3 phase 4 wires.

The advanced fuel management keeps full-load fuel consumption as low as 207g/(kW·h), effectively lowering long-term running cost for continuous-duty and heavy-load industrial projects. Each set is matched with a Leroy Somer LSA52.3 L9 alternator for stable voltage and long service life.

Generator set	Model No.			SW2500E6
	Standby power			2750KVA/2200KW
	Rated power			2500KVA/2000KW
	Output voltage			440V
	Frequency			60 Hz
	Noise level(7m)			82 dBA (silent type)
	Power factor			COSΦ=0.8
	Phase/wires			3 phase 4 wires
	Start mode			Electric
	Fuel consumption			669L/h (100% load standby) 569L/h (100% load prime) 397L/h (75% load)
	Ambient temperature			-25°C to 45°C. The coolant heater is needed when the temperature is below 10°C
	Humidity			Less than 80％
	Altitude			Below one thousand (1000) meters
	Max current(amps)			3609 (440V)
	Protection			Low oil-pressure, High water temperature, Over-speed, Over-current.
Engine	Brand			Weichai Baudouin
	Model			20M33D2460E311
	Engine speed:			1800 rpm
	Cylinders layout			20 cylinder,V type
	Fuel			0# light diesel
	Fuel consumption			≤207g/(kW·h)-----100% rated power
	Fuel system			Electronically controlled high pressure common rail
	Oil pan capacity			235L
	Coolant capacity			114L (engine only)
	Compression Ratio:			15:1
	Engine Power (prime/standby)			2200KW/2460KW
	Aspiration			Turbocharged and aftercooled
	Bore and stroke			150×185 mm
	Start mode			DC24V electric start
	Displacement			65.4L
Alternator	Brand			Leroy Somer
	Model			LSA52.3 L9
	Protection			IP23
	Insulation class			H
	Phase			3
	Bearing			single
	Frequency fluctuation			≤±0.5 %
	Voltage distortion			＜4%
	Output (Cont./Standby)			2077kw/2284kw
	Frequency			60 Hz
	Rated voltage			440V
	Frequency regulation			≤±0.5 %(stable)
	Voltage control			AVR
Technical parameters of Control Panel:
Brand		Smargen	Model		HGM 6120N
Function:
► Manual & automatic start / stop control for generator set ► Programmable output terminals for preheat & idle function ► Shutdown protection against high coolant temperature ► Shutdown protection against low engine oil pressure ► Generator overload protection ► Overfrequency & underfrequency protection ► Overvoltage, undervoltage & voltage unbalance protection for generator output ► Emergency shutdown protection for overspeed fault ►Real-time battery voltage monitoring with high/low voltage alarm ► Cumulative running hours display and historical fault record storage ► Built-in AMF function with real-time mains voltage monitoring ► Automatic genset start/stop and ATS transfer control on mains failure/restore ►Simultaneous display of mains and generator operating parameters
Note:Indicate this function depend on the set points of the controller in field.

Drawing	Dimension
	Open type: 6500*2320*2600 mm 15,500 kg
	Silent type: Designed by order

Remark:

Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.

Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.

We offer client whole genset warranty of 12 months or 2,000 running hours warranty which comes first

Weichai Baudouin engine and Leroy Somer alternator enjoy worldwide after service offered by Weichai Baudouin and Leroy somer global after service network.

Weichai Baudouin engine enjoy 2 year or 2,000 running hours warranty.

Quick after service and parts are available from Stone Power or distributors in your location.

FAQ:

• Q:What is the rated power of this generator?
• A:2000kW / 2500kVA diesel generator.
• Q:Do you provide CE certificate?
• A:Yes, we have CE certificate.
• Q:What’s the warranty period?
• A:The genset warranty is 12 months or 2000 running hours which comes first.
• Q:Can we customize the control panel?
• A: Smargen or Deepsea is witin the optional range.
• Q:How long is the lead time?
• A:It is to be confirmed in different situations.
