1100KW Weichai Diesel Generator Set 60Hz open type 3 phase with Wattek alternator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Rated Speed: | 1800rpm | Rated Power: | 1375KVA/1100KW |
|---|---|---|---|
| Engine Model: | 12M33D1320E201 | Cylinders Layout: | 12 Cylinder, V Type |
| Controller: | Smargen HGM9510N | Fuel Consumption: | 198g/kw.h |
| Lines: | 12 Lines | Compression Ratio: | 15:1 |

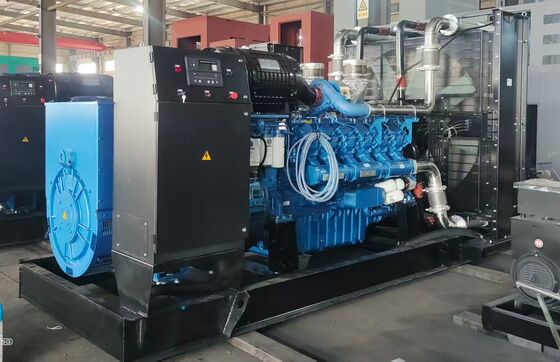

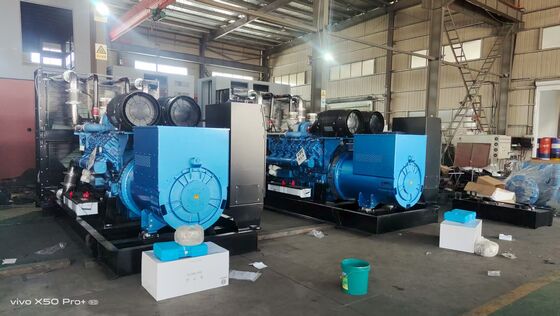

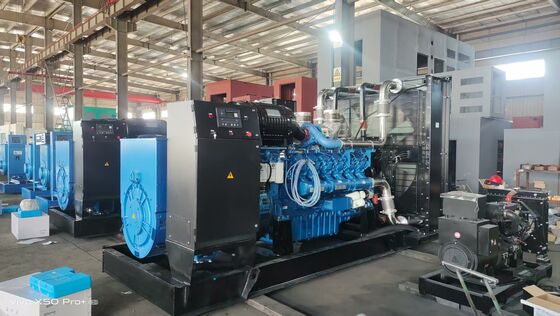

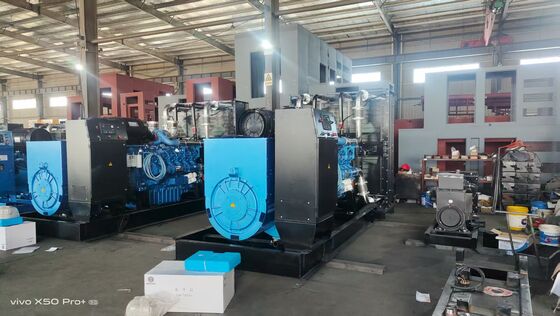

1100KW Weichai Diesel Generator Set 60Hz Open Type 3 phase with Wattek alternator
This is a 1100kW Weichai diesel generator set, 60Hz, 3-phase 12-lead alternator from Wattek. The 12-lead design allows reconnection
for different rated voltages to meet various project requirements.
|
Generator set |
Model No. | SW1375E6 |
| Standby power | 1500KVA/ 1200KW | |
| Rated power | 1375KVA/ 1100KW | |
| Output voltage | 400V/230V | |
| Frequency | 60 Hz | |
| Noise level(7m) | 80dB (silent type) | |
| Power factor | COSΦ=0.8 | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption |
282 L/h (100% load) 196 L/h (70% load) |
|
| Max current(amps) | 2165 | |
| Protection |
Low oil-pressure, Over-current. Over-speed, High water temperature |
|
|
Engine |
Brand | Weichai Baudouin |
| Model | 12M33D1320E201 | |
| Engine speed: | 1800 rpm | |
| Cylinders layout | 12 cylinder,V type | |
| Fuel | 0# light diesel | |
| Fuel consumption | 198g/kw.h | |
| Oil Capacity (low/high) | 117/ 155 L | |
| Compression Ratio: | 15:1 | |
| Engine Power (prime/standby) | 1200KW/1320KW | |
| Aspiration | Turbocharged-Aftercooled | |
| Governor/Class | Electronic | |
| Bore and stroke | 150× 185 mm | |
| Start mode | DC24V electric start | |
| Displacement | 39.2L |
|
Alternator |
Brand | Wattek |
| Model | WHI 6G | |
| Insulation class | H | |
| Protection | IP23 | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | <4% | |
| lines | 12 | |
| Output (Cont./Standby) | 1375KVA/ 1500KVA | |
| Frequency | 60 Hz | |
| Rated voltage | 400V/3 phase | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
Technical parameters of Control Panel:
| Brand | Smartgen | Model | HGM9510N |
|
| Function: | ||||
|
• Mains supply monitoring • Auto engine start/stop upon mains fail & mains return • Auto synchronisation & paralleling for multiple gensets • Load sharing & load management • Reverse power protection • Earth fault protection • Over/under voltage, over/under frequency, overload protection • Engine protection: high temp, low oil pressure, over speed • LCD display: real-time current, voltage, frequency & power parameters • Battery voltage monitoring • Running hours recording & maintenance reminder • Alarm & fault indication, event logging • Remote control & communication: RS485, Modbus RTU, Ethernet, J1939 ECU-controlled engines • Local manual operation available |
||||
Note:Indicate this function depend on the set points of the controller in field.
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| system | |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Spring isolator • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | N/A | N/A |
| Bottom lifting eyes | √ | √ |
| digital type control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Air circuit breaker cabinet (2500A/3P) | √ | √ |
| Radiator | √ | √ |
| High-efficient muffler | √ | √ |
| Exhaust elbow&flexible pipe | √ | √ |
| Storage battery&battery charger | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type : 2600*950*1650 mm 1,800 kg |
|
Silent type: 3600*1350*2000 mm 2,450 kg
|
Remark:
Prime Power (PRP):
Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP):
The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty:
Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client complete genset warranty of one year or 2,000 running hours warranty which comes firstly.
Weichai Baudouin engine enjoy 2 years or 2,000 running hours warranty offered by Weichai Baudouin global after service network.Wattek alternator enjoy 2 years or 2,000 running hours warranty.
Quick after service and parts are available from Stone Power or distributors in your location.
FAQ:
- Q:What is the rated power of this generator?
- A:1100kW / 1375kVA diesel generator.
- Q:Do you provide CE certificate?
- A:Yes, we have CE certificate.
- Q:What’s the warranty period?
- A:The genset warranty is 12 months or 2000 running hours which comes first.
- Q:Can we customize the control panel?
- A: Smargen or Deepsea is witin the optional range.
- Q:How long is the lead time?
- A:It is to be confirmed in different situations.
