1500KW WEICHAI 1875kVA Baudouin Engine Diesel Generator Set 440V 60Hz Wattek
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Engine Model: | 16M33D1785E311 | Cylinder Layout: | V Type,16 Cylinders |
|---|---|---|---|
| Fuel System: | Common Rail | Compression Ratio:: | 15:1 |
| Bore And Stroke: | 150×185 Mm | Displacement: | 52.3 L |
| Max Current: | 2887 | Phase/wires: | 3 Phase 4 Wires |

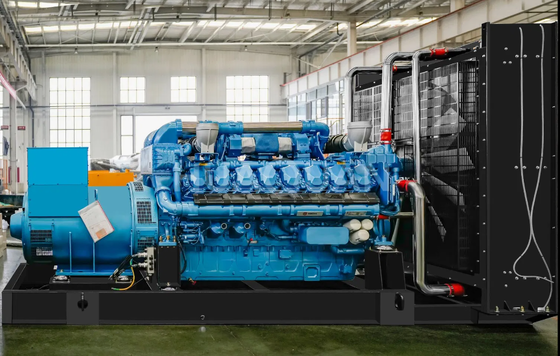

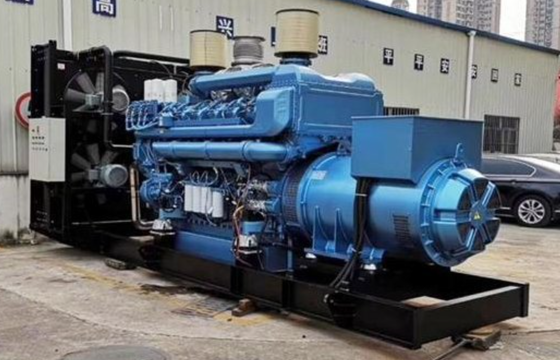

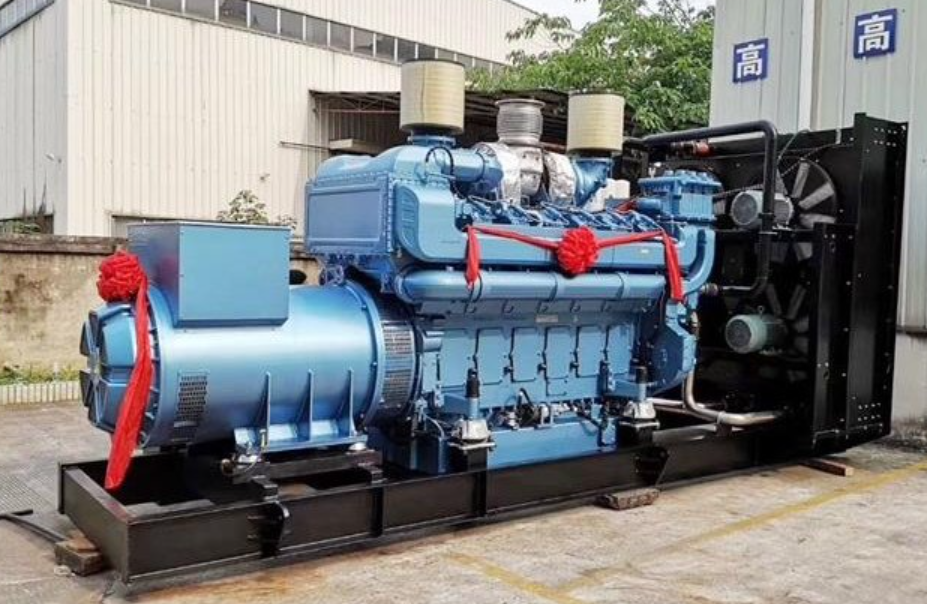

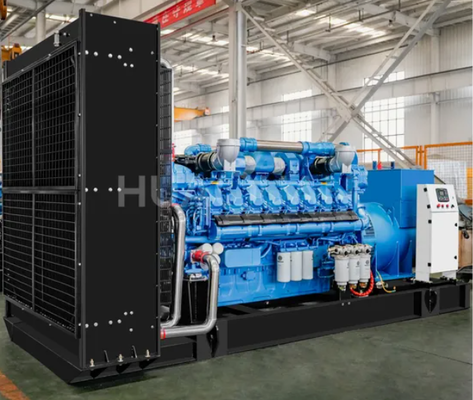

1500KW WEICHAI 1875kVA Baudouin Engine Diesel Generator Set 440V 60Hz Wattek
This 1500kW Weichai Baudouin diesel generator delivers 1875kVA prime power, configured for 440V 60Hz.
Powered by reliable Baudouin engine under Weichai group and matched with Wattek alternator.
| Generator set | Model No. | SW1875E6 | ||
| Standby power | 2000KVA/1600KW | |||
| Rated power | 1875KVA/1500KW | |||
| Output voltage | 400V | |||
| Frequency | 60 Hz | |||
| Noise level(7m) | 75 Dba (silent type) | |||
| Power factor | COSΦ=0.8(lagging) | |||
| Phase/wires | 3 phase 4 wires | |||
| Start mode | Electric | |||
| Max current (amps) | 2887 | |||
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current,etc | |||
| Engine | Brand | Weichai Baudouin | ||
| Model | 16M33D1785E311 | |||
| Cooling System | Water cooled/radiator (50 degree) | |||
| Cylinder layout | V type,16 cylinders | |||
| Fuel | 0# light diesel | |||
| Fuel system | Common-Rail | |||
| Emission standard | Non-road China III (equel to Tier 3) | |||
| Compression Ratio: | 15:1 | |||
|
Engine Power (Prime/standby) |
1625KW/1785KW | |||
| Aspiration | Turbocharged and intercooling | |||
| Governor/Class | Electronic | |||
| Bore and stroke | 150×185 mm | |||
| Start mode | DC24V electric start | |||
| Coolant capacity | 130L | |||
| Oil capacity (high/low) | 171L /114L | |||
| Displacement | 52.3 L | |||
| Alternator | Brand | Wattek | ||
| Model | WHI 7D | |||
| Protection | IP23 | |||
| Insulation class | H | |||
| Bearing | single | |||
| Winding pitch | 2/3 | |||
| Winding leads | 12 lines,Reconnectable | |||
| Frequency fluctuation | ≤±0.5 % | |||
| Voltage distortion | ＜4% | |||
| Output (Cont./standy) | 1935KVA/2128KVA | |||
| Rated voltage | 400V | |||
| Frequency regulation | ≤±0.5 %(stable) | |||
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | Smartgen | Model | HGM9510N |
|
| Function: | ||||
|
• Mains supply monitoring • Auto engine start/stop upon mains fail & mains return • Auto synchronisation & paralleling for multiple gensets • Load sharing & load management • Reverse power protection • Earth fault protection • Over/under voltage, over/under frequency,overload protection • Engine protection: high temp, low oil pressure, over speed • LCD display: real-time current, voltage, frequency & power parameters • Battery voltage monitoring • Running hours recording & maintenance reminder • Alarm & fault indication, event logging •Remote control & communication: RS485, Modbus RTU, Ethernet, J1939 ECU-controlled engines • Local manual operation available |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily 8 hours base fuel tank | N/A | √ |
| Intelligent LCD display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Radiator | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Air breaker (3200A/3P) | √ | √ |
| High-efficient muffler | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery/cable/charger | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
 |
Open type : 5550*2200*2550 mm 11,500 kg |
|
Silent type: 12192*2438*2896mm 17,500 kg (40H containerized soundproof canopy)
|
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of 24 months or 2,000 running hours warranty which comes first
Weichai Baudouin engine enjoy worldwise after service offered by Weichai Baudouin global after service network.
Quick after service and parts are available from Stone Power or distributors in your location.
FAQ:
- Q:What is the rated power of this generator?
- A:1500kW / 1875kVA diesel generator.
- Q:Do you provide CE certificate?
- A:Yes, we have CE certificate.
- Q:What’s the warranty period?
- A:The genset warranty is 24 months or 2000 running hours which comes firstly.
- Q:Can we customize the control panel?
- A: Smargen or Deepsea is witin the optional range.
- Q:How long is the lead time?
- A:It is to be confirmed in different situations.
