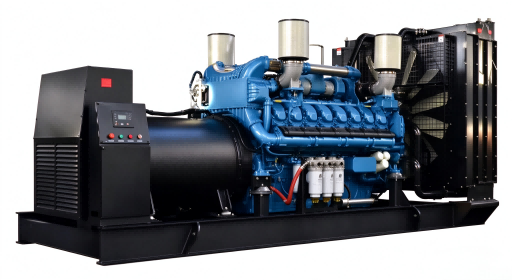

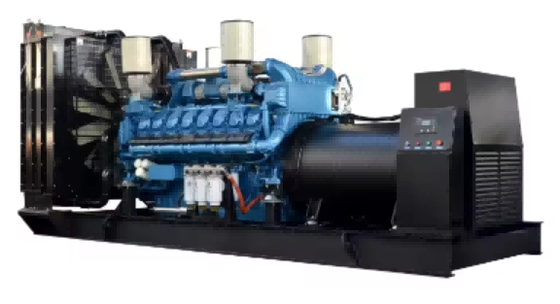

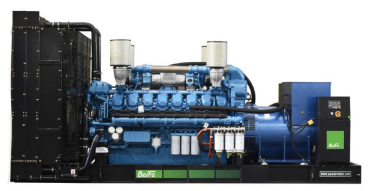

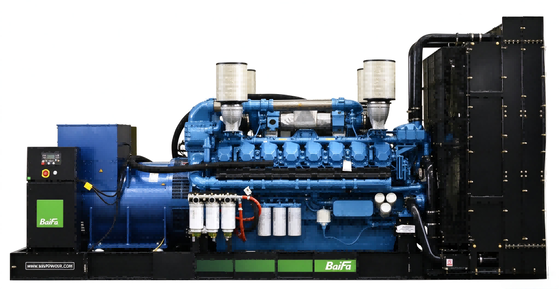

1800Kw Weichai Baodouin Diesel Generator Set with Stanford Alternator 60Hz 2250Kva
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Output Voltage: | 400V-440V | Frequency: | 60 Hz |
|---|---|---|---|
| Power Factor: | COSΦ=0.8 | Max Current: | 3609 (440V) |
| Engine Speed:: | 1800 Rpm | Bore And Stroke: | 150×185 Mm |
| Displacement: | 65.4L | Protection: | IP23 |
1800Kw Weichai Baodouin Diesel Generator Set with Stanford Alternator 60Hz 2250Kva
This 1800kW (2250kVA) diesel generator set is powered by a Weichai Baudouin engine and fitted
with a Stanford alternator, designed for 60Hz operation to supply reliable prime or standby power.
| Generator set | Model No. | SW2250E6 |
| Standby power | 2500KVA/2000KW | |
| Rated power | 2250KVA/1800KW | |
| Output voltage | 400V-440V | |
| Frequency | 60 Hz | |
| Noise level(7m) | 82 dBA (silent type) | |
| Power factor | COSΦ=0.8 | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption |
507L/h (110% load) 457L/h (100% load) 341L/h (75% load) |
|
| Ambient temperature |
-25°C to 45°C. The coolant heater is needed when the temperature is below 10°C |
|
| Humidity | Less than 80％ | |
| Altitude | Below one thousand (1000) meters | |
| Max current(amps) | 3609 (440V) | |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | |
| Engine | Brand | Weichai Baudouin |
| Model | 20M33D2230E311 | |
| Engine speed: | 1800 rpm | |
| Cylinders layout | 16 cylinder,V type | |
| Fuel | 0# light diesel | |
| Fuel consumption | ≤197g/(kW·h) | |
| Fuel system | Electronically controlled high pressure common rail | |
| Oil pan capacity | 240L | |
| Coolant capacity | 114L (engine only) | |
| Compression Ratio: | 15:1 | |
|
Engine Power (prime/standby) |
2027KW/2230KW | |
| Aspiration | Turbocharged and aftercooled | |
| Emission standard | Tier III | |
| Bore and stroke | 150×185 mm | |
| Start mode | DC24V electric start | |
| Displacement | 65.4L | |
| Alternator | Brand | Stamford |
| Model | S7L1D-G41 | |
| Protection | IP23 | |
| Insulation class | H | |
| Phase | 3 | |
| Bearing | single | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Output (Cont./Standby) |
2005kw/2145kw (400V) 2000kw/2140kw (440V) |
|
| Frequency | 60 Hz | |
| Rated voltage | 400-440V | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR MX341 PMG |
| Technical parameters of Control Panel: | ||||
| Brand | Smargen | Model | HGM 6120N |  |
| Function: | ||||
|
► Manual & automatic start / stop control for generator set ► Programmable output terminals for preheat & idle function ► Shutdown protection against high coolant temperature ► Shutdown protection against low engine oil pressure ► Generator overload protection ► Overfrequency & underfrequency protection ► Overvoltage, undervoltage & voltage unbalance protection for generator output ► Emergency shutdown protection for overspeed fault ► Real-time battery voltage monitoring with high/low voltage alarm ► Cumulative running hours display and historical fault record storage |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Steel frame common base with vibration absorbers | √ | √ |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | N/A | √ |
| Digital type control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Circuit breaker cabinet | √ | √ |
| Radiator | √ | √ |
| High-efficient silencer. | √ | √ |
| Exhaust flexible pipes | √ | √ |
| Storage battery&cable&charger | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type: 6250*2320*2600 mm 14,900 kg |
|
Silent type: Designed by order |
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client whole genset warranty of 12 months or 1,500 running hours warranty which comes first
Weichai Baudouin engine and Stamford alternator enjoy worldwide after service.
FAQ:
Q:What is the rated power of this generator?
A:2250KVA/1800KW diesel generator.
Q:Do you provide CE certificate?
A:Yes, we have CE certificate.
Q:What’s the warranty period?
A:The genset warranty is 12 months or 1500 running hours which comes firstly.
Q:Can we customize the control panel?
A: Smargen or Deepsea is witin the optional range.
Q:How long is the lead time?
A:It is to be confirmed in different situations.
