475Kw Weichai Baudouin Diesel Generator Set with Wattek Alternator and global warranty
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Engine Brand: | Weichai Baudouin | Rated Speed: | 1800r/min |
|---|---|---|---|
| Cylinders Layout: | 6 In Line | Compression Ratio: | 15:1 |
| Bore And Stroke: | 150×185 Mm | Protection: | IP23 |
| Insulation Class: | H | Frequency: | 60Hz |
475Kw Weichai Baudouin Diesel Generator Set with Wattek
Alternator and global warranty

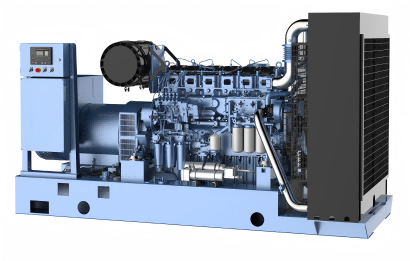

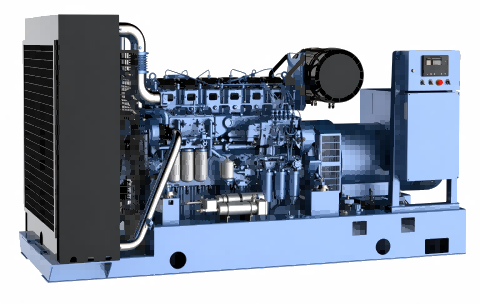

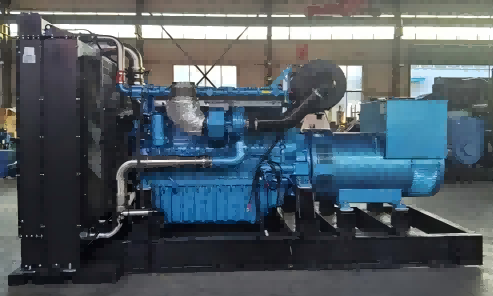

This is a 475kW diesel generator set powered by Weichai Baudouin engine, matched
with Wattek alternator. Suitable for prime or standby power supply as 475KW or 522KVA.
Global warranty available.
| Generator set | Model No. | SW594E6 |
| Standby power | 653KVA/522KW | |
| Rated power | 594KVA/475KW | |
| Output voltage | 440V/254V | |
| Frequency | 60 Hz | |
| Noise level(7m) | 79 dB (silent type) | |
| Power factor | COSΦ=0.8 | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption |
124.4L/h (100% load) 93.2L/h (75% load) |
|
| Max current(amps) | 856 | |
| Protection |
Low oil-pressure, High water temperature, Over-speed, Over-current. |
|
| Engine | Brand | Weichai Baudouin |
| Model | 6M33D633E201 | |
| Rated speed (r/min.) | 1800 | |
| Cylinders layout | 6 in line | |
| Fuel | 0# light diesel | |
| Fuel system | Mechanical fuel pump+Electronic governor | |
| Oil Capacity | 36/61 L | |
| Compression Ratio | 15:1 | |
|
Engine Power (prime/standby) |
575KW/633KW | |
| Aspiration | Turbocharged&Intercooling | |
| Bore and stroke | 150×185 mm | |
| Start mode | DC24V electric start | |
| Displacement | 19.6 L | |
| Alternator | Brand | Wattek |
| Model | WHI 5D | |
| Rated speed (r/min.) | 1500 | |
| Protection | IP23 | |
| Insulation class | H | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Output (Cont./Standby) | 594kva/653 kva | |
| Frequency | 60 Hz | |
| Rated voltage | 440V/3 phase | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | Smartgen | Model | HGM6110N |  |
| Function: | ||||
|
► Manual & automatic start / stop control for generator set ► Programmable output terminals for preheat & idle function ► Shutdown protection against high coolant temperature ► Shutdown protection against low engine oil pressure ► Generator overload protection ► Overfrequency & underfrequency protection ► Overvoltage, undervoltage & voltage unbalance protection for generator output ► Emergency shutdown protection for overspeed fault ► Real-time battery voltage monitoring with high/low voltage alarm ► Cumulative running hours display and historical fault record storage |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. | optional | √ |
| Bottom lifting eyes | √ | √ |
| Intelligent LED display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Circuit breaker cabinet | √ | √ |
| Radiator | √ | √ |
| High-efficient silencer | √ | √ |
| Exhaust flexible pipes | √ | √ |
| Storage battery&cable&charger | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type: 3810*1600*2100 mm 4,250 kg |
|
Silent type: 4900*2200*2450 mm 6,850 kg |
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application,
in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour
within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power
for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation
capability is available at this rating.
Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is
strictly factory tested before delivery.
We offer client warranty of complete genset 12 months or 2,000 running hours warranty which comes first
Weichai Baudouin engine enjoy worldwide after service offered by Weichai Baudouin global after service network.
Quick after service and parts are available from Stone Power or distributors in your location.
FAQ:
Q:What is the rated power of this generator?
A:475KW / 522KVA diesel generator.
Q:Do you provide CE certificate?
A:Yes, we have CE certificate.
Q:What’s the warranty period?
A:The genset warranty is 12 months or 2000 running hours which comes firstly.
Q:Can we customize the control panel?
A: Smargen or Deepsea is within the optional range.
Q:How long is the lead time?
A:It is to be confirmed in different situations.
